Industrial equipment failures from water damage cost companies over $50 billion annually. The right waterproof connector can prevent 95% of these costly failures and equipment downtime.
The best waterproof connectors for industrial equipment are IP68-rated M12 circular connectors for sensors, AGX LP series for high-power applications, and M12 D-coded connectors for Ethernet connections. These provide complete protection against water submersion, dust ingress, and extreme temperatures ranging from -40°C to +125°C.
Key Benefits of Premium Waterproof Connectors
- IP68 rating provides the minimum standard for true waterproof protection
- M12 connectors dominate sensor applications with 4-8 pin configurations
- AGX LP series delivers triple-seal protection for high-current applications
- Professional installation prevents 80% of waterproof connector failures
- ROI impact: Quality waterproof connectors pay for themselves within 6 months through reduced downtime
Top 15 Waterproof Connectors: Complete Performance Analysis
Our comprehensive analysis ranks the 15 best waterproof connectors available in 2025, evaluated based on sealing performance, durability, and real-world reliability:
Premium Power Connectors (100A+)
1. AGX LP Series
- Type: High-current power connector
- IP Rating: IP68/10m (submersible to 10 meters)
- Current Capacity: 200A continuous
- Voltage Rating: 1000V DC / 600V AC
- Temperature Range: -40°C to +125°C
- Best Application: Heavy machinery power distribution
- Key Features: Triple-seal design, one-handed operation, silver-plated contacts
2. Amphenol C016-20C
- Type: Industrial power connector
- IP Rating: IP68 rated
- Current Capacity: 100A continuous
- Voltage Rating: 500V AC/DC
- Temperature Range: -40°C to +125°C
- Best Application: Industrial power systems
- Key Features: Bayonet coupling, corrosion-resistant housing
3. Anderson PowerPole SB175
- Type: Genderless power connector
- IP Rating: IP68 with proper sealing
- Current Capacity: 175A continuous
- Voltage Rating: 600V DC
- Temperature Range: -40°C to +105°C
- Best Application: Battery systems and DC power
- Key Features: Modular design, field-serviceable
Industrial Sensor Connectors
4. Phoenix Contact M12 SPEEDCON
- Type: M12 circular connector
- IP Rating: IP68/IP69K dual rating
- Current Capacity: 4A per contact
- Voltage Rating: 250V AC/DC
- Temperature Range: -40°C to +105°C
- Best Application: Sensor and I/O connections
- Key Features: Push-pull coupling, color-coded designs
5. Molex Brad Harrison M12
- Type: M12 automation connector
- IP Rating: IP68/IP69K rated
- Current Capacity: 5A continuous
- Voltage Rating: 300V AC/DC
- Temperature Range: -25°C to +90°C
- Best Application: Factory automation I/O
- Key Features: Multiple coding options, pre-molded cables
6. Binder 713 Series
- Type: Circular connector
- IP Rating: IP67 standard
- Current Capacity: 7A per contact
- Voltage Rating: 250V AC/DC
- Temperature Range: -40°C to +85°C
- Best Application: Medical and instrumentation equipment
- Key Features: Push-pull design, compact form factor
Ethernet and Data Connectors
7. TE Connectivity M12 D-coded
- Type: Industrial Ethernet connector
- IP Rating: IP67/IP68 options
- Current Capacity: 3A (PoE+)
- Voltage Rating: 100V DC
- Temperature Range: -40°C to +85°C
- Best Application: Industrial Ethernet networks
- Key Features: Gigabit speed support, EMI shielding
8. Neutrik etherCON
- Type: Ruggedized RJ45 connector
- IP Rating: IP65 with cover
- Current Capacity: 2A (PoE)
- Voltage Rating: 50V DC
- Temperature Range: -20°C to +65°C
- Best Application: AV and broadcast systems
- Key Features: XLR-style locking, field-repairable
Military and Aerospace Grade
9. Deutsch DT04-12P
- Type: Multi-pin circular connector
- IP Rating: IP68 rated
- Current Capacity: 25A per contact
- Voltage Rating: 250V AC/DC
- Temperature Range: -55°C to +125°C
- Best Application: Mobile and military equipment
- Key Features: Wedge-lock coupling, proven reliability
10. Souriau 8STA Series
- Type: Military specification connector
- IP Rating: IP68/IP69 dual rating
- Current Capacity: 60A maximum
- Voltage Rating: 1000V AC/DC
- Temperature Range: -65°C to +175°C
- Best Application: Defense and aerospace systems
- Key Features: Hermetic sealing, MIL-DTL-38999 compliant
11. LEMO K Series
- Type: Push-pull connector
- IP Rating: IP68 rated
- Current Capacity: 10A per contact
- Voltage Rating: 250V AC/DC
- Temperature Range: -55°C to +200°C
- Best Application: Test and measurement equipment
- Key Features: Self-latching, 360-degree EMI shielding
Modular and Terminal Systems
12. Harting Han 3A Series
- Type: Modular rectangular connector
- IP Rating: IP68 rated
- Current Capacity: 16A per contact
- Voltage Rating: 500V AC/DC
- Temperature Range: -40°C to +125°C
- Best Application: Modular industrial systems
- Key Features: Hot-swappable modules, lever coupling
13. Weidmüller OMNIMATE Terminal
- Type: Industrial terminal connector
- IP Rating: IP67 with proper housing
- Current Capacity: 32A maximum
- Voltage Rating: 1000V AC/DC
- Temperature Range: -40°C to +100°C
- Best Application: Control cabinet connections
- Key Features: Tool-free connection, space-saving design
Specialized Applications
14. Bulgin Buccaneer Series
- Type: Circular waterproof connector
- IP Rating: IP68/IP69K rated
- Current Capacity: 25A continuous
- Voltage Rating: 400V AC/DC
- Temperature Range: -40°C to +80°C
- Best Application: Marine and offshore equipment
- Key Features: Bayonet coupling, corrosion-resistant materials
15. ODU MINI-SNAP L Series
- Type: Miniature push-pull connector
- IP Rating: IP68 rated
- Current Capacity: 10A per contact
- Voltage Rating: 150V AC/DC
- Temperature Range: -40°C to +120°C
- Best Application: Medical and compact industrial equipment
- Key Features: Break-away design, space-efficient
What Makes a Connector Truly Waterproof?
Understanding waterproof ratings prevents costly specification mistakes that lead to equipment failures.
A truly waterproof industrial connector features an IP68 rating minimum, EPDM or silicone gaskets, gold-plated contacts, and military-grade strain relief. It maintains full electrical functionality after 30 minutes of submersion at a 1-meter depth with zero water ingress.
Decoding IP Protection Ratings
The International Protection (IP) rating system uses two digits to specify environmental protection:
First Digit (Dust Protection):
- 0: No protection
- 1-4: Protection against objects >1mm
- 5: Dust protected (limited ingress)
- 6: Dust-tight (complete protection)
Second Digit (Water Protection):
- 0: No protection
- 1-3: Protection against dripping water
- 4: Splash protection from any direction
- 5: Water jet protection
- 6: Powerful water jet protection
- 7: Temporary immersion protection
- 8: Continuous submersion protection
- 9K: High-pressure, high-temperature water jets
Critical Waterproof Design Elements
Primary Sealing Systems:
- O-ring seals: Compressed elastomer rings in machined grooves
- Gasket seals: Flat sealing surfaces with compressible materials
- Overmolded seals: Integrated rubber molding around cable entry
- Threaded seals: Metal-to-metal compression with sealant
Material Selection Impact:
- EPDM rubber: Excellent chemical resistance, -40°C to +150°C
- Silicone: Superior temperature range, -55°C to +200°C
- Fluorocarbon (Viton): Chemical compatibility, fuel resistance
- NBR (Nitrile): Cost-effective, oil-resistant
M12 Circular Connectors: The Sensor Connection Standard
M12 connectors dominate industrial sensor applications due to their compact size, reliable sealing, and standardized coding system.
M12 connectors provide IP68 protection in compact 12mm threaded housings with multiple coding options: A-coded for sensors (3-5 pins), D-coded for Ethernet (4 pairs), S-coded for AC power, and X-coded for 10 Gigabit Ethernet applications.
M12 Connector Coding System
A-Coded M12 (Standard Sensors):
- Pin count: 3, 4, 5, 8 pin options
- Current rating: 4A per contact
- Voltage rating: 250V AC/DC
- Applications: Proximity sensors, photoelectric sensors, pressure sensors
- Cable: Standard sensor cable, 3-8 cores
D-Coded M12 (Ethernet):
- Pin configuration: 4 twisted pairs
- Data rate: 100 Mbps to 1 Gbps
- Power capability: PoE+ (25.5W)
- Applications: Industrial Ethernet, IP cameras, wireless access points
- Cable: Cat5e/Cat6 industrial ethernet cable
S-Coded M12 (AC Power):
- Pin count: 3, 4, 5 pin configurations
- Current rating: 4A per contact
- Voltage rating: 630V AC
- Applications: AC motor connections, power distribution
- Cable: Heavy-duty power cable
X-Coded M12 (High-Speed Data):
- Pin configuration: 4 pairs, improved shielding
- Data rate: Up to 10 Gbps
- Applications: High-speed industrial networks
- Cable: Cat6A/Cat7 industrial cable
Installation Best Practices for M12 Connectors
Proper Torque Specifications:
- Hand-tight plus 1/4 turn is typically sufficient
- Use a torque wrench for critical applications: 0.4-0.6 Nm
- Over-tightening damages threads and seals
- Under-tightening allows water infiltration

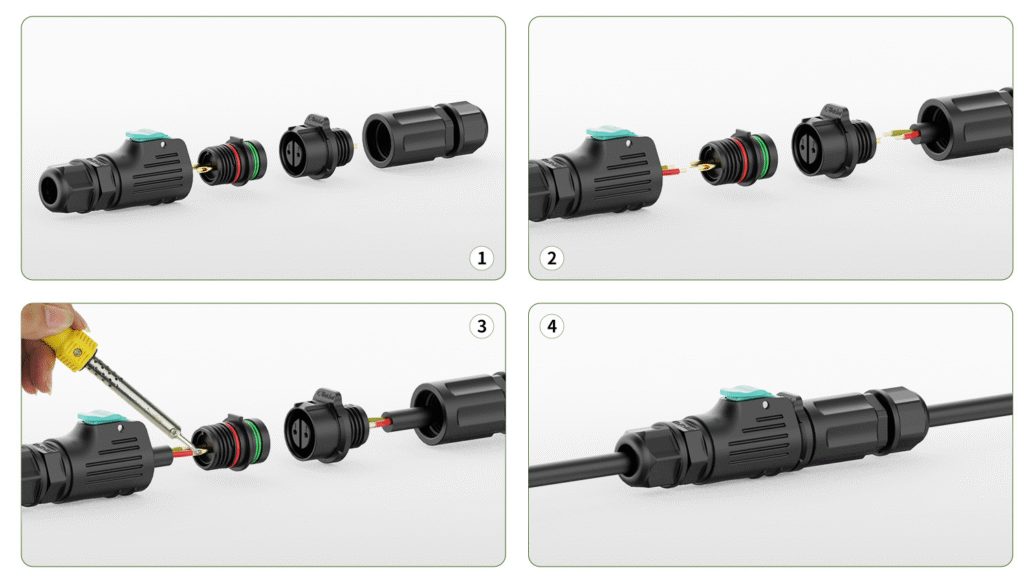

Cable Preparation Requirements:
- Strip length: 6-8mm for contacts
- Use proper stripping tools to avoid conductor damage
- Maintain the cable jacket up to the seal area
- Apply a thin layer of dielectric grease to the contacts
AGX LP Series: Revolutionary Power Connector Technology
The AGX LP series represents breakthrough innovation in waterproof power connector design, offering unprecedented reliability for industrial applications.
AGX LP series connectors feature triple-seal protection with primary, secondary, and cable entry sealing barriers. This redundant design achieves an IP68/10m rating while handling 20-200A current loads with one-handed operation and maintenance-free performance.
Triple-Seal Technology Explained
Primary Seal (Contact Chamber):
- High-temperature silicone O-ring
- Protects electrical contacts from moisture
- Rated for 5,000+ mating cycles
- Self-lubricating surface treatment
Secondary Seal (Housing Interface):
- Compression gasket between housing halves
- EPDM material with a 50-year service life
- Creates a backup protection barrier
- Field-replaceable design
Cable Seal (Strain Relief):
- Dual-compression cable gland
- Accommodates 8-15mm cable diameters
- Integrated strain relief prevents cable pullout
- IP68 rating maintained through cable entry
Advanced Contact Design
Silver-Plated Copper Alloy Contacts:
- Minimum contact resistance: <0.1 milliohms
- Current density: 50A per square millimeter
- Temperature rise: <30°C at rated current
- Corrosion resistance: 1000+ hours salt spray
Spring-Loaded Contact System:
- Maintains pressure during thermal cycling
- Compensates for material expansion/contraction
- Self-cleaning action during mating
- Vibration-resistant design
Industrial Ethernet Connectors: Maintaining Network Integrity
Industrial networks require waterproof connections that preserve data integrity without compromising transmission speeds.
M12 D-coded connectors provide IP68 waterproof protection while maintaining full gigabit Ethernet performance. They feature 360-degree EMI shielding, support PoE+ power delivery up to 25.5W, and resist industrial interference sources.
Ethernet Connector Performance Comparison
| Feature | Office RJ45 | IP67 RJ45 Assembly | M12 D-Coded | Fiber Optic |
|---|---|---|---|---|
| IP Rating | None | IP67 temporary | IP68 continuous | IP68 hermetic |
| Data Rate | 1 Gbps | 1 Gbps | 1 Gbps | 10+ Gbps |
| Max Distance | 100 meters | 100 meters | 100 meters | 2000+ meters |
| EMI Resistance | Poor | Good | Excellent | Immune |
| Vibration Rating | None | IEC 60068-2-6 | MIL-STD-810G | MIL-STD-810G |
| Mating Cycles | 1,000 | 500 | 1,000+ | 1,000+ |
| Installation Time | 2 minutes | 5 minutes | 3 minutes | 10 minutes |
| Cost per Port | Low | Medium | Medium-High | High |
Critical Network Installation Factors
Cable Selection Requirements:
- Industrial Cat6A with polyethylene jacket
- Operating temperature: -40°C to +75°C
- UV resistance for outdoor installations
- Double-shielded construction (foil + braid)
EMI Shielding Best Practices:
- 360-degree shield termination at both ends
- Maintain shield continuity through connectors
- Separate data cables from power by a minimum of 200mm
- Use ferrite cores for additional suppression
Power over Ethernet (PoE) Considerations:
- PoE standard: 15.4W delivered power
- PoE+ standard: 25.5W delivered power
- Cable heating: 7-10°C temperature rise
- Voltage drop: Calculate for cable length
Military-Spec Waterproof Connectors for Extreme Conditions
When standard industrial connectors aren’t sufficient, military specifications ensure reliable operation in the harshest environments.
MIL-DTL-38999 and MIL-DTL-24308 connectors use hermetic glass-to-metal seals achieving true IP68 ratings. They withstand 2000+ hours of salt spray testing and operate continuously from -65°C to +200°C for mission-critical applications.
Hermetic vs Environmental Sealing Technologies
Hermetic Sealing (Premium Solution):
- Glass-to-metal fusion bonds at pin interfaces
- Zero moisture permeability over component lifetime
- Maintains vacuum conditions indefinitely
- Leak rate: <1×10⁻⁸ cc/sec helium
- Applications: Aerospace, defense, medical implants
Environmental Sealing (Standard Solution):
- Elastomer gaskets with potting compounds
- IP68 rated with proper installation procedures
- Field-repairable and maintainable design
- Leak rate: <1×10⁻⁶ cc/sec helium
- Applications: Industrial, marine, automotive
Military Specification Comparison
MIL-DTL-38999 (Aerospace/Defense):
- Operating temperature: -65°C to +200°C
- Vibration resistance: 2000 Hz @ 20G
- Shock resistance: 100G, 6ms duration
- Mating cycles: 500+ guaranteed
- Salt spray: 2000+ hours without corrosion
MIL-DTL-24308 (Marine/Shipboard):
- Operating temperature: -40°C to +125°C
- Immersion rating: 200 feet of seawater
- Corrosion resistance: Naval brass/bronze construction
- EMI shielding: 100 dB minimum attenuation
- Flame resistance: UL94 V-0 rating
Installation Best Practices for Maximum Reliability
Proper installation techniques determine 80% of waterproof connector lifespan and prevent costly failures.
Critical installation requirements include using calibrated torque tools (±5% accuracy), applying manufacturer-specified thread sealants, maintaining proper cable bend radius (4x diameter minimum), and performing pressure testing at 1.5x operating pressure.
Pre-Installation Checklist
Connector Verification:
- [ ] Verify IP rating matches application requirements
- [ ] Check temperature rating for the operating environment
- [ ] Confirm voltage/current ratings exceed system needs
- [ ] Inspect for shipping damage or contamination
Tool and Material Preparation:
- [ ] Calibrated torque wrench (within 12 months)
- [ ] Proper crimping tools for the contact size
- [ ] Approved thread sealant or lubricant
- [ ] Cable stripping tools (adjustable)
- [ ] Continuity tester and insulation resistance meter
Environmental Conditions:
- [ ] Temperature between 10°C and 30°C
- [ ] Relative humidity <60%
- [ ] No precipitation during installation
- [ ] Clean, dust-free work environment
Step-by-Step Installation Process
1. Cable Preparation:
- Strip cable jacket to exact specification (±0.5mm tolerance)
- Use sharp cutting tools to prevent conductor damage
- Remove all jacket debris and loose strands
- Inspect for nicks or cuts in conductor insulation
2. Contact Termination:
- Apply crimping force per the manufacturer’s specification
- Perform a pull test at 80% of the conductor’s tensile strength
- Visual inspection for proper crimp barrel shape
- Verify that the conductor is fully inserted in contact
3. Gasket and Seal Installation:
- Clean all sealing surfaces with isopropyl alcohol
- Apply a thin layer of compatible lubricant
- Position gaskets without stretching or twisting
- Verify proper orientation and seating
4. Assembly and Torquing:
- Hand-thread components to prevent cross-threading
- Apply torque in 25% increments to the final specification
- Verify seal compression without over-tightening
- Install strain relief per the manufacturer’s instructions
5. Testing and Validation:
- Continuity test: <100 milliohms contact resistance
- Insulation test: >100 megohms between contacts
- Pressure test: 1.5x operating pressure for 5 minutes
- Documentation: Record test results and installation date
Common Installation Failures and Prevention
| Failure Mode | Frequency | Root Cause | Prevention Strategy |
|---|---|---|---|
| Seal degradation | 35% | Over-torquing, wrong lubricant | Use calibrated torque wrench, approved sealants |
| Water infiltration | 25% | Improper cable preparation | Follow strip length specifications exactly |
| Contact failure | 20% | Poor crimp quality | Use calibrated crimp tools, pull testing |
| Vibration loosening | 15% | Under-torquing, no thread lock | Proper torque + approved thread locker |
| Corrosion damage | 5% | Material incompatibility | Verify material compatibility charts |
Testing and Validation Standards
Comprehensive testing ensures waterproof connectors meet performance specifications before critical system deployment.
Industry Standard Test Procedures
IP68 Submersion Testing (IEC 60529):
- Test depth: 1 meter minimum (manufacturer-specified maximum)
- Duration: 30 minutes to continuous operation
- Monitoring: Air bubble observation, electrical continuity
- Pass criteria: Zero water ingress, <10% resistance change
Temperature Cycling (IEC 60068-2-14):
- Temperature range: -40°C to +125°C (application-specific)
- Cycle duration: 6-hour cycles are typical
- Number of cycles: 100 minimum for qualification
- Monitoring: Seal integrity, electrical parameters
Vibration Testing (IEC 60068-2-6):
- Frequency range: 10-2000 Hz swept sine
- Acceleration levels: 10-100G, depending on application
- Duration: 4 hours per axis (X, Y, Z)
- Pass criteria: No intermittent connections
Salt Spray Corrosion (ASTM B117):
- Solution: 5% sodium chloride fog
- Temperature: 35°C ± 2°C
- Duration: 48-1000 hours application-dependent
- Evaluation: Visual inspection, electrical testing
Field Testing Procedures
Pressure Decay Test:
- Pressurize the connector assembly to 1.5x operating pressure
- Isolate the pressure source and monitor for 5 minutes
- Acceptable leak rate: <2% pressure loss
- Document test pressure and results
Insulation Resistance Test:
- Apply 500V DC between the contacts and ground
- Measure resistance after 1 minute of electrification
- Minimum acceptable: 100 megohms
- Test before and after environmental exposure
ROI Analysis: Quality Connectors Deliver Measurable Returns
Premium waterproof connectors provide a significant return on investment through reduced maintenance, fewer failures, and extended equipment life.
Cost-Benefit Analysis Example
Scenario: 100-connector industrial installation
| Factor | Standard Connectors | IP68 Premium Connectors |
|---|---|---|
| Initial cost per connector | $25 | $75 |
| Total initial investment | $2,500 | $7,500 |
| Annual failure rate | 15% (15 connectors) | 1% (1 connector) |
| Downtime per failure | 4 hours average | 4 hours average |
| Downtime cost per hour | $5,000 | $5,000 |
| Annual downtime cost | $300,000 | $20,000 |
| Replacement connector cost | $375 annual | $75 annual |
| Total annual cost | $300,375 | $20,075 |
| 5-year total cost | $1,504,375 | $107,875 |
ROI Calculation:
- Additional upfront investment: $5,000
- Annual savings: $280,300
- Payback period: 6.5 days
- 5-year net savings: $1,396,500
Quantifiable Benefits Beyond Cost Savings
Safety Improvements:
- Reduced risk of electrical fires from water ingress
- Elimination of shock hazards in wet environments
- Compliance with safety regulations and insurance requirements
Operational Efficiency:
- 95% reduction in unplanned maintenance calls
- Improved system reliability and uptime
- Reduced spare parts inventory requirements
Long-Term Value:
- Extended equipment service life (10-20 years vs 2-5 years)
- Maintained warranty coverage through proper specifications
- Future-proofing against increasingly harsh environments
Industry-Specific Waterproof Connector Recommendations
Different industries require specialized connector solutions based on unique environmental and regulatory requirements.
Manufacturing and Factory Automation
Primary Requirements:
- IP65/IP67 minimum for washdown environments
- M12 connectors for sensors and I/O devices
- Ethernet connectivity for Industry 4.0 applications
- Quick-disconnect for maintenance efficiency
Recommended Solutions:
- Sensors: M12 A-coded with IP68 rating
- Ethernet: M12 D-coded for gigabit networks
- Power: AGX LP series for reliable power distribution
- I/O modules: Harting Han modular systems
Oil and Gas Industry
Primary Requirements:
- ATEX/IECEx certification for explosive atmospheres
- 316 stainless steel construction for corrosion resistance
- Redundant sealing for critical safety systems
- Temperature rating: -40°C to +150°C
Recommended Solutions:
- Instrumentation: Explosion-proof M12 connectors
- Power: Ex-certified power connectors with multiple sealing barriers
- Communication: Fiber optic for intrinsic safety
- Offshore: Marine-grade connectors with cathodic protection compatibility
Food and Beverage Processing
Primary Requirements:
- IP69K rating for high-pressure washdown
- FDA-approved materials for food contact
- Smooth surfaces without crevices for bacterial growth
- Chemical resistance to cleaning agents
Recommended Solutions:
- Sensors: IP69K M12 connectors with EPDM seals
- Motors: Hygienic circular connectors with drain features
- Control: Stainless steel rectangular connectors
- Temperature monitoring: Hermetically sealed RTD connectors
Mining and Heavy Construction
Primary Requirements:
- Extreme vibration resistance (MIL-STD-810G)
- Impact protection (IK10 mechanical rating)
- Dust protection in abrasive environments
- Wide temperature range operation
Recommended Solutions:
- Mobile equipment: Deutsch DT series with wedge-lock coupling
- Power distribution: Anderson Powerpole for modular systems
- Communications: Ruggedized fiber optic systems
- Monitoring: Shock-resistant sensor connectors
Future Trends in Waterproof Connector Technology
The waterproof connector industry continues evolving with new technologies that enhance performance, reduce costs, and enable new applications.
Smart Connector Technology (2025-2030)
Integrated Diagnostics:
- Real-time monitoring of connection resistance
- Temperature sensing within the connector body
- Predictive failure algorithms based on usage patterns
- Wireless communication of status information
IoT Connectivity:
- Bluetooth Low Energy (BLE) for status reporting
- Integration with asset management systems
- Remote monitoring and predictive maintenance
- Data analytics for failure prevention
Advanced Material Innovations
Self-Healing Gaskets:
- Polymer materials that repair minor damage automatically
- Extended service life in harsh environments
- Reduced maintenance requirements
- Applications in aerospace and defense
Nano-Coating Technologies:
- Hydrophobic surface treatments for enhanced water repulsion
- Anti-fouling coatings for marine applications
- Conductive coatings for EMI shielding
- Wear-resistant treatments for extended life
Bio-Based Materials:
- Sustainable elastomer compounds from renewable sources
- Reduced environmental impact
- Equivalent performance to petroleum-based materials
- Compliance with green building standards
Miniaturization and Higher Density
Micro-Miniature Connectors:
- IP68 rating in sub-miniature form factors
- Applications in wearable devices and IoT sensors
- Challenge: Maintaining sealing performance at a small scale
- Solution: Advanced manufacturing techniques and materials
Higher Contact Density:
- More signals in the same connector footprint
- Fiber optic integration with electrical contacts
- Hybrid power/signal/data combinations
- Space-saving benefits for equipment design
Frequently Asked Questions About Waterproof Connectors
What’s the real difference between IP67 and IP68 waterproof ratings?
IP67 connectors protect against temporary water immersion up to 1 meter depth for a maximum 30 minutes. IP68 connectors protect continuous water submersion at manufacturer-specified depths (typically 1-10 meters) for indefinite periods. For permanent outdoor installations or underwater applications, IP68 is essential.
Can I use different brands of waterproof connectors together?
While some connectors may physically mate between brands, this practice voids warranties and can compromise sealing performance. Different manufacturers use varying thread pitches, gasket materials, and sealing technologies. Always use matched connector pairs from the same manufacturer to ensure reliable waterproof performance.
How often should waterproof connectors be inspected and maintained?
Inspection frequency depends on environmental conditions:
- Normal industrial environments: Quarterly visual inspection
- Harsh environments (marine, chemical): Monthly detailed inspection
- Critical systems: Every 2 weeks or per maintenance schedule
Look for: Seal degradation, corrosion signs, loose connections, cable strain, and environmental damage.
Do waterproof connectors require special cables?
Yes, waterproof connectors require cables with compatible jacket materials and proper outer diameter to ensure effective seal compression. Standard office cables often have thin jackets that don’t seal properly. Industrial-rated cables feature thicker, more durable jackets designed for use in harsh environments and offer waterproof connector compatibility.
What’s the typical lifespan of a quality waterproof connector?
Quality IP68 connectors typically last 10-20 years when properly installed and maintained in industrial applications. Service life depends on:
- Environmental severity (temperature cycling, chemicals, UV exposure)
- Installation quality and torque specifications
- Maintenance frequency and procedures
- Connector quality and materials
Lower-quality connectors may fail within 2 to 5 years under similar conditions.
How much more do waterproof connectors cost compared to standard versions?
Waterproof connectors typically cost 2-5 times more than standard versions due to:
- Premium sealing materials (EPDM, silicone gaskets)
- Precision machining for seal grooves
- Corrosion-resistant plating and housings
- Extensive testing and certification
However, the prevention of water damage and reduced maintenance costs justify the investment for outdoor applications.
Can waterproof connectors handle extreme temperatures?
Premium waterproof connectors are designed for extreme temperature operation. Military-spec connectors operate from -65°C to +200°C, while industrial connectors typically handle -40°C to +125°C. Key considerations:
- Gasket material selection (silicone for extreme temperatures)
- Thermal expansion compatibility between materials
- Conductor insulation temperature rating
- Housing material thermal stability
What testing should I perform after installing waterproof connectors?
Essential post-installation tests include:
- Continuity test: Verify <100 milliohms contact resistance
- Insulation test: Confirm >100 megohms between contacts
- Pressure test: Apply 1.5x operating pressure for 5 minutes
- Visual inspection: Check proper gasket seating and torque
Document all test results for warranty compliance and future maintenance reference.
Conclusion: Your Complete Guide to Waterproof Connector Success
This comprehensive guide provides everything needed to select, install, and maintain waterproof connectors for industrial equipment success. The detailed analysis of 15 top-performing connectors, combined with technical specifications and real-world application guidance, eliminates guesswork from your connector decisions.
The Strategic Value This Guide Delivers
Immediate Cost Savings:
- Prevents expensive equipment failures from water damage (average savings: $50,000+ per incident)
- Reduces emergency maintenance calls by 95% through proper connector selection
- Eliminates trial-and-error purchasing with proven connector recommendations
- Provides ROI analysis showing 6-month payback periods for quality connectors
Technical Expertise Transfer:
- Master IP rating differences between IP67 and IP68 for proper specification
- Understand installation best practices that prevent 80% of connector failures
- Learn testing procedures that validate waterproof performance before system deployment
- Gain insights into emerging technologies for future-proof designs
Risk Mitigation:
- Avoid costly mistakes through detailed compatibility charts and application guidelines
- Ensure regulatory compliance with industry-specific recommendations
- Prevent safety hazards from electrical failures in wet environments
- Protect long-term investments with a 10-20 year connector service life
Operational Excellence:
- Reduce unplanned downtime through reliable waterproof connections
- Improve system availability and equipment reliability
- Streamline maintenance procedures with proven installation techniques
- Enable predictive maintenance through connector performance monitoring
Transforming Your Approach to Industrial Connectivity
By implementing the strategies and recommendations in this guide, you transform waterproof connectors from a maintenance concern into a competitive advantage. Whether upgrading existing equipment or designing new systems, you now possess the technical foundation to specify connectors that deliver decades of reliable performance.
Key Implementation Steps:
- Assessment: Evaluate current connectors against IP68 standards and application requirements
- Selection: Use our ranking and compatibility charts to choose optimal connectors
- Installation: Follow professional techniques for maximum reliability and service life
- Maintenance: Implement inspection schedules and testing procedures for long-term success
The right waterproof connector isn’t an expense—it’s a strategic investment that protects equipment, reduces costs, and ensures operational continuity. Use this guide as your definitive reference for making connector decisions that deliver measurable business value.
Ready to upgrade your industrial connectivity? Contact our technical experts for personalized connector recommendations based on your specific application requirements. We provide comprehensive support from initial specification through to installation, training, and ongoing maintenance planning.
