Male Female
Waterproof Connector
& Plug Socket Connector
Male Female Waterproof Connector Supplier & Manufacturer
Founded in 2016, AGX®️ is one of the leading individually male and female waterproof connector (in-line circular joint connector) manufacturers in China, supplying popular LP Series waterproof connectors from 2-pole to 24-poles for high efficiency and low cost.
All our waterproof connectors are CE, RoHS, TUV, UL certificated, ensuring high performance and a long lifetime. We offer customized solutions, OEM, ODM service. Wholesalers, distributors, dealers, traders, agents are welcome to purchase in bulk with us.
Factory Direct Pricing
Customization
Quality Control

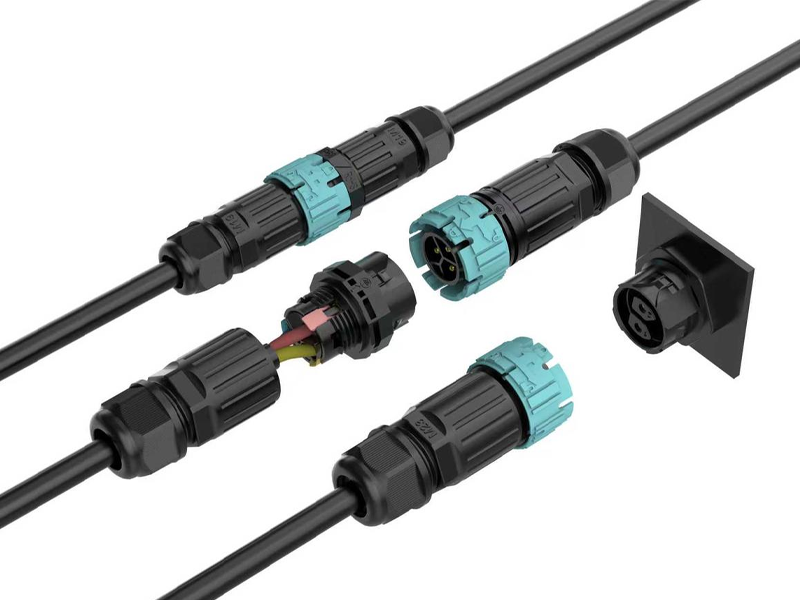

What is Male Female Waterproof Connector?
A male female waterproof connector is a type of electrical plug-and-socket connection designed to provide secure, watertight electrical linking between two cables or devices.
The male connector (plug) has pins that fit into the female connector (socket) with matching contacts, forming a stable and sealed connection that prevents water, dust, and corrosion from entering.
These connectors are typically used in outdoor, marine, automotive, and industrial applications, where reliable power or signal transmission is needed under wet or harsh environments.
Common types include inline circular connectors, panel mount connectors, and cable-to-cable joints, available in various IP-rated waterproof designs such as IP65, IP67, or IP68.
Why Choose Male Female Waterproof Connector?

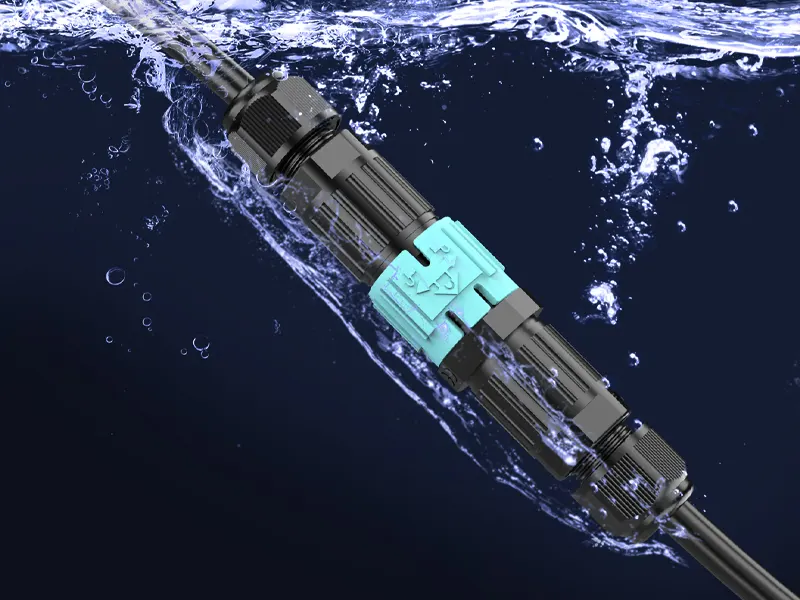

IP68 Protection Rating
High Current & Strong Conductivity

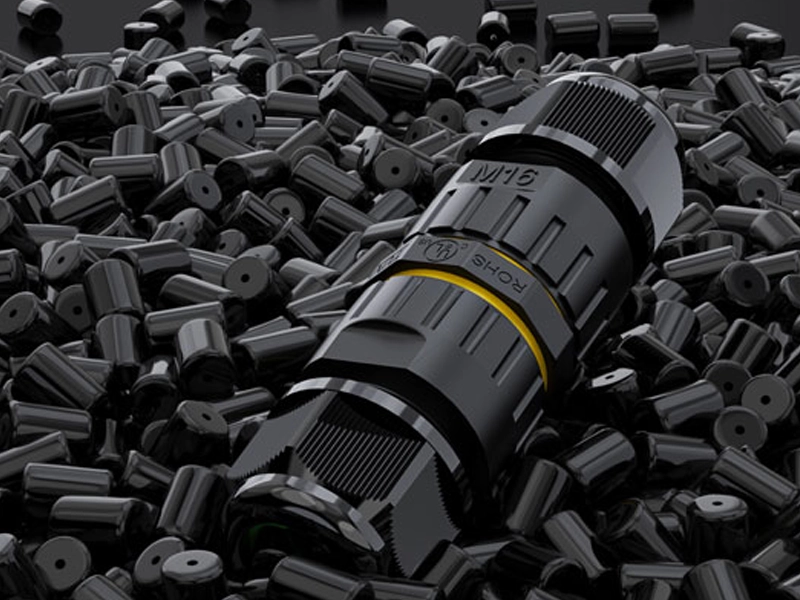

Durable PA66 Engineering Material

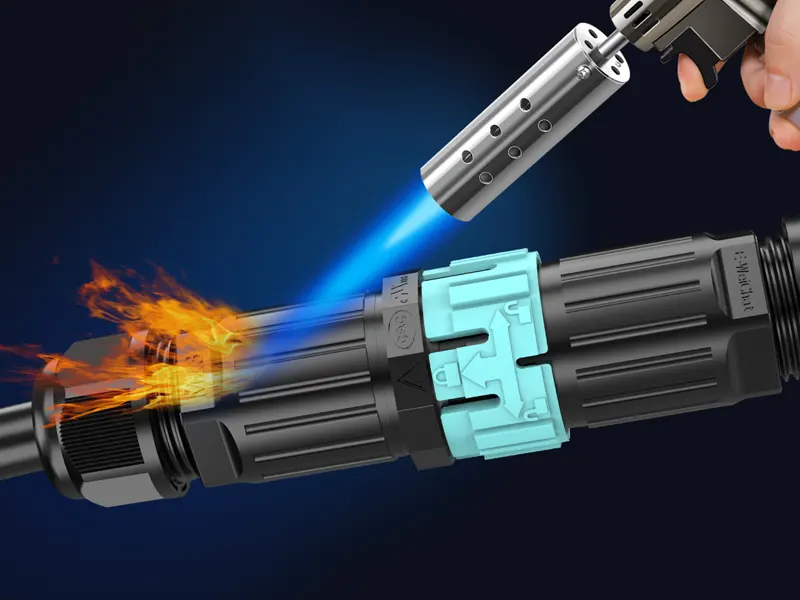

Flame-Retardant and Safe Design

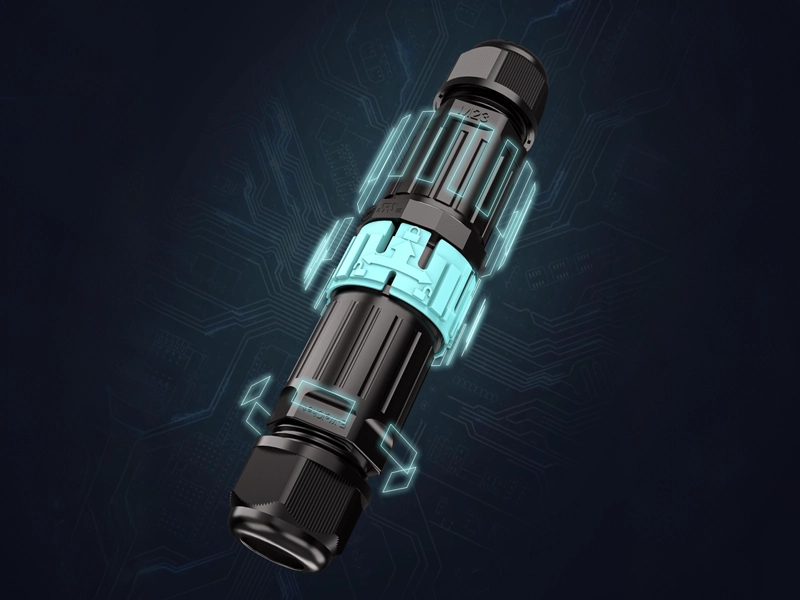

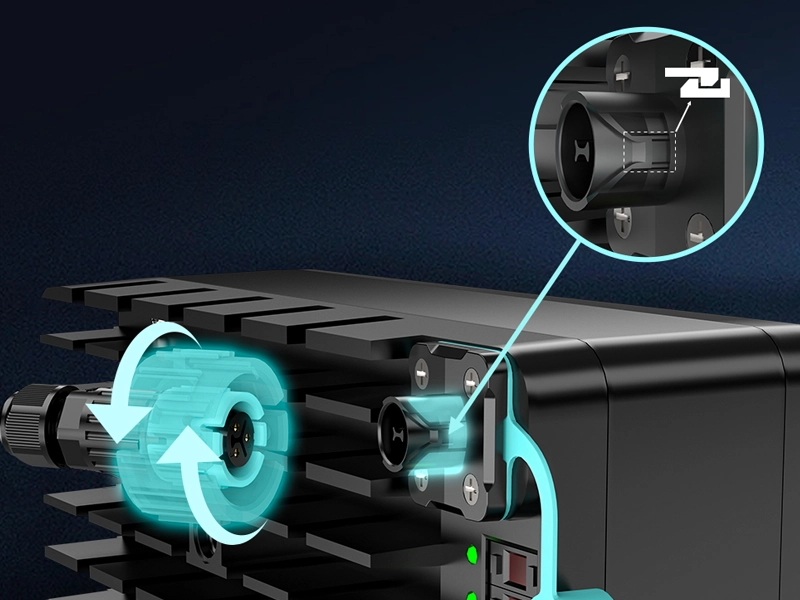

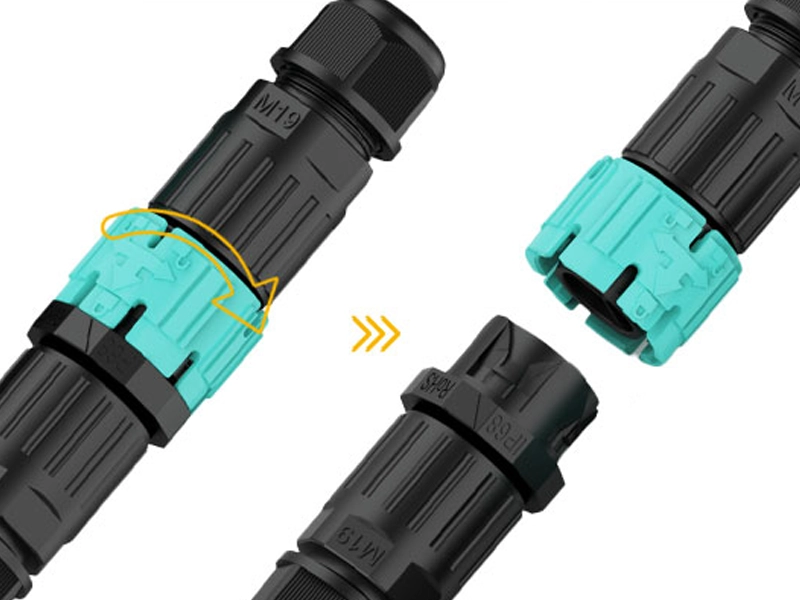

Patented Self-Locking Structure
Superior Sealing and Anti-Corrosion
Male Female Waterproof Connector in Various Applications

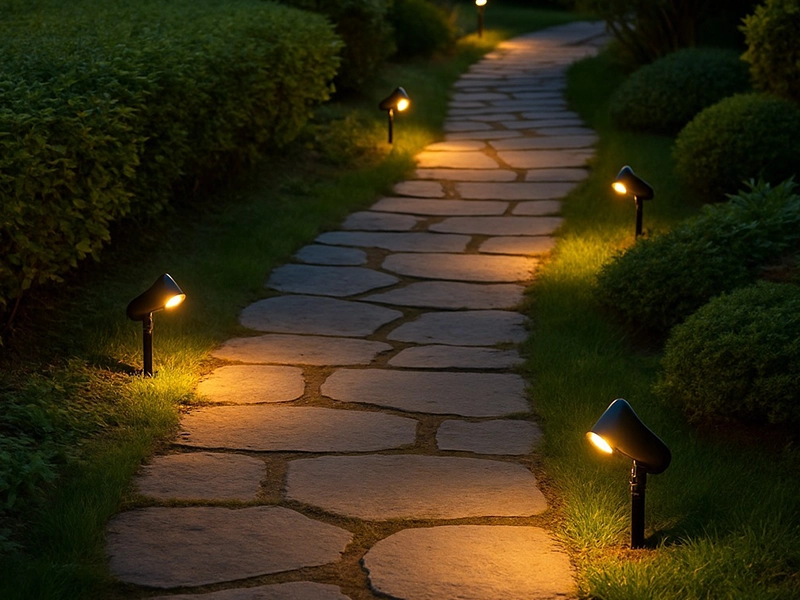

Garden & Path Lighting
Indoor & Outdoor LED Strip Lights
LED Wall-Washers & Underground Lights
LED Rope & Twinkle Lights

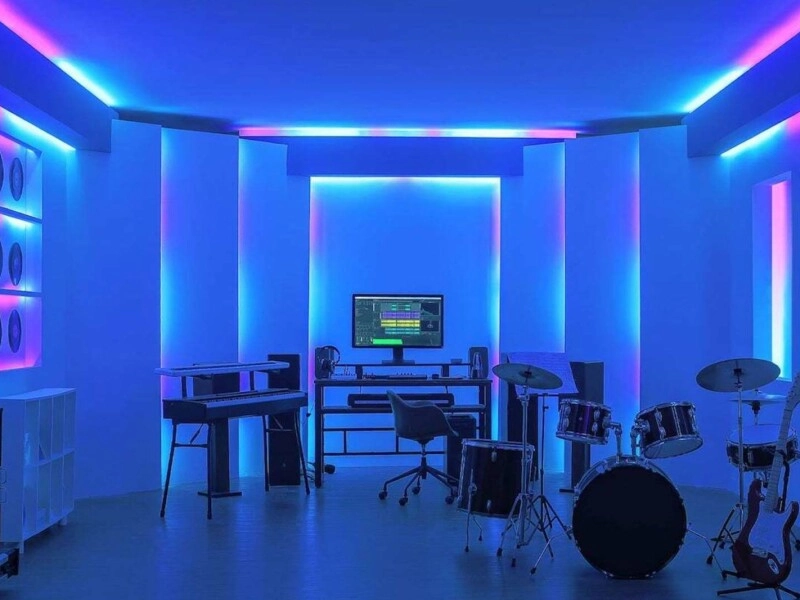

Indoor LED Fixtures
Outdoor LED Fixtures
Wholesale Male Female Connector By Series

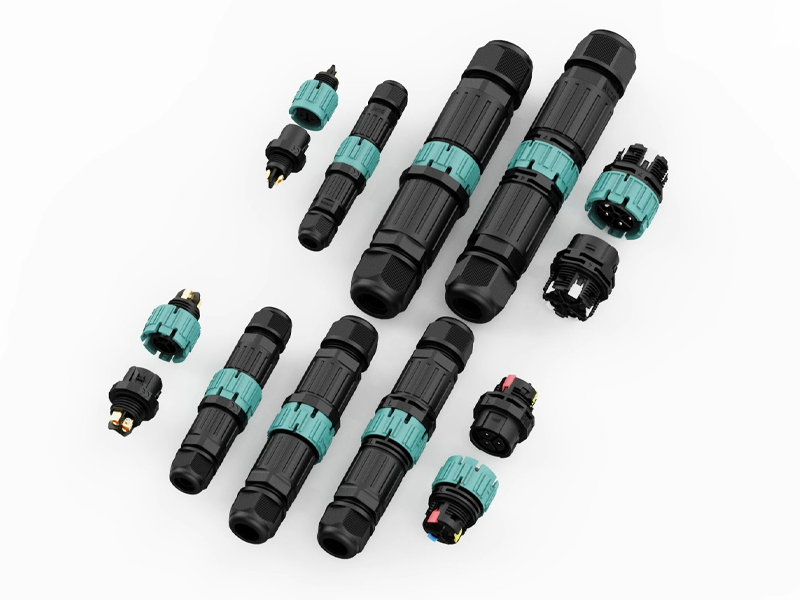

Male Female Connector Series
| No | Model | Min. wire size | Max. wire size | Rated Voltage | Current | Cable Outer Diameter | IP Rating | Fire Rating |
|---|---|---|---|---|---|---|---|---|
| 1 | EW-M15MF-2/3/4P | mm² | 1.5mm² | 450V | 10A | 2.5-4.5mm,3.5-7mm | IP68 | UL 94 V-0 |
| 2 | EW-M19MF-2/3/4/5P | mm² | 2.5mm² | 450V | 20A | 3.5-7mm, 7-10mm | IP68 | UL 94 V-0 |
| 3 | EW-M23MF-2/3/4/5P | mm² | 4.0mm² | 450V | 30A | 5-9mm, 9-12mm | IP68 | UL 94 V-0 |
| 4 | EW-M28MF-2/3/4/5/6P | mm² | 6.0mm² | 450V | 50A | 5-9mm, 9-12mm,10-14mm | IP68 | UL 94 V-0 |
| 5 | EW-P23MF-2/3P | mm² | 2.5mm² | 450V | 16A | 5-9mm, 9-12mm | IP68 | UL 94 V-0 |
| 6 | EW-P25MF-4/5P | mm² | 2.5mm² | 450V | 16A | 5-9mm, 9-12mm,10-14mm | IP68 | UL 94 V-0 |
| 7 | EW-M23MF-T-3P | mm² | 4.0mm² | 450V | 30A | 5-9mm, 9-12mm | IP68 | UL 94 V-0 |
| 8 | EW-M23MF-Y-3P | mm² | 4.0mm² | 450V | 30A | 5-9mm, 9-12mm | IP68 | UL 94 V-0 |
| 9 | EW-M23MF-H-3P | mm² | 4.0mm² | 450V | 30A | 5-9mm, 9-12mm | IP68 | UL 94 V-0 |

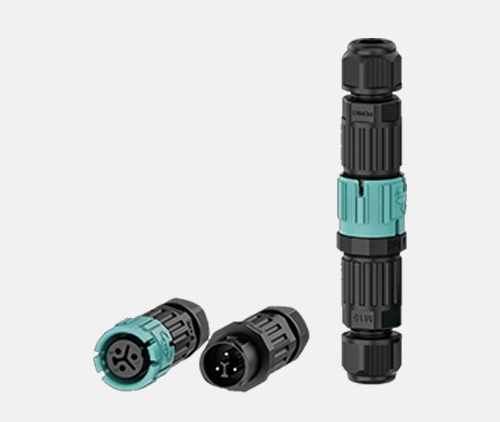

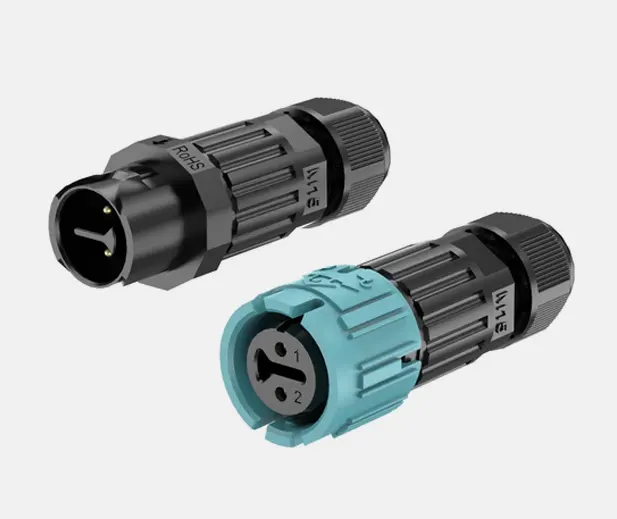

EW-M15MF-2/3/4P

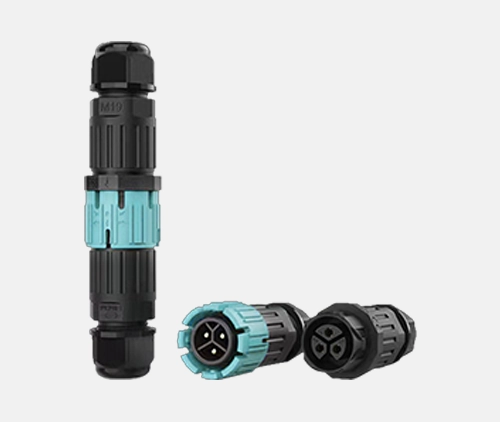

EW-M19MF-2/3/4/5P

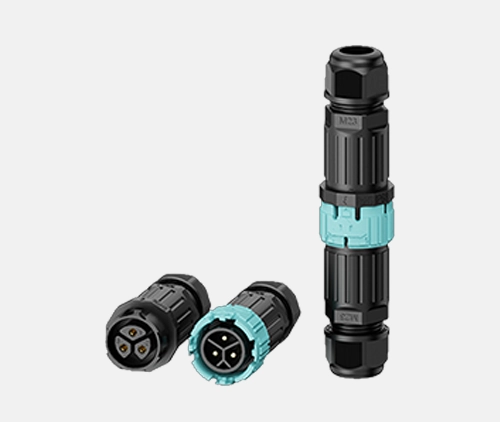

EW-M23MF-2/3/4/5P

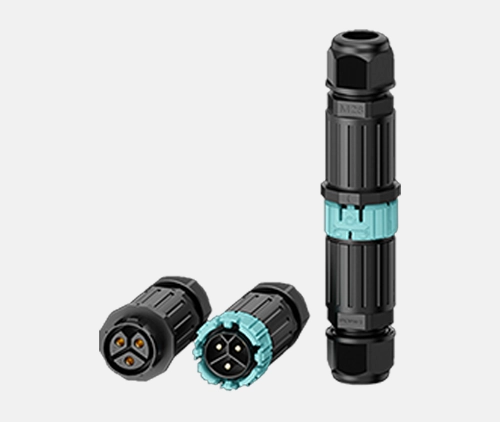

EW-M28MF-2/3/4/5/6P

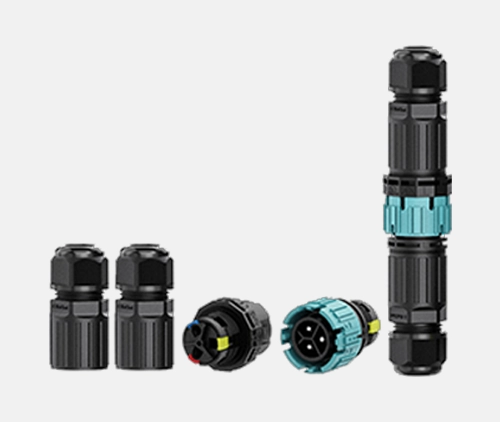

EW-P23MF-2/3P

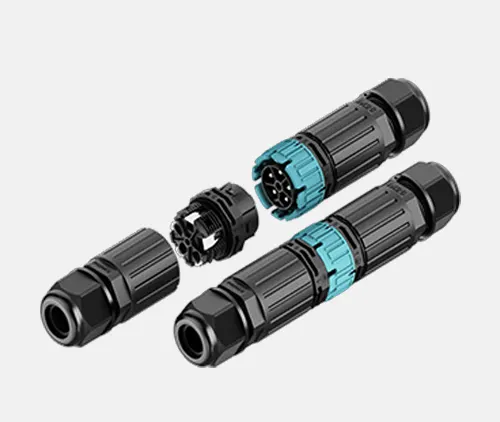

EW-P25MF-4/5P

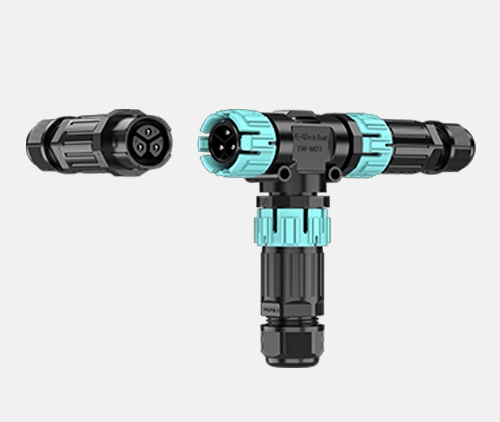

EW-M23MF-T-3P

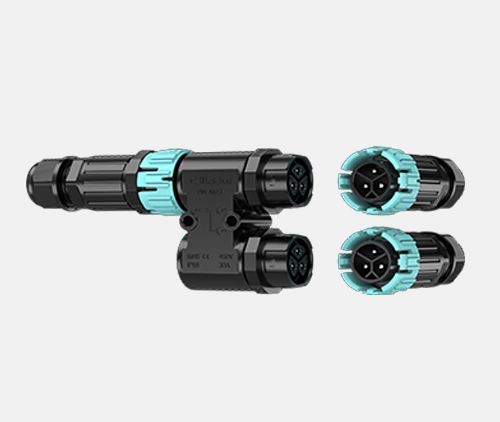

EW-M23MF-Y-3P

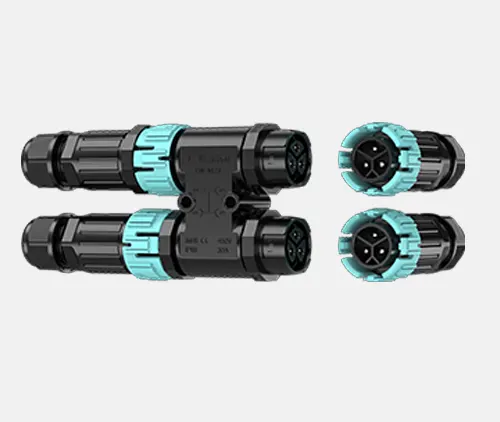

EW-M23MF-H-3P
Product Video

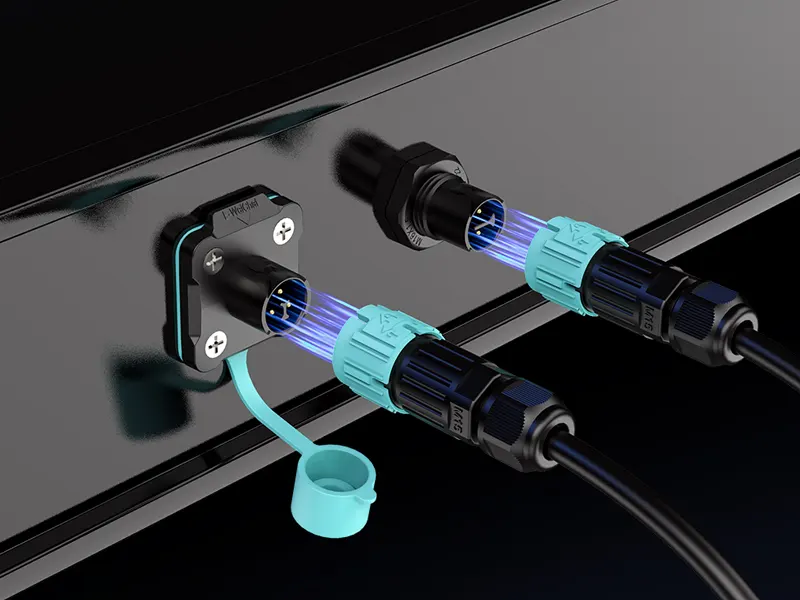

Panel Mount Connector Series
| No | Model | Min. wire size | Max. wire size | Rated Voltage | Current | Cable Outer Diameter | IP Rating | Fire Rating |
|---|---|---|---|---|---|---|---|---|
| 1 | EW-M15MP-2/3/4P | mm² | 1.5mm² | 450V | 10A | 2.5-4.5mm, 3.5-7mm | IP68 | UL 94 V-0 |
| 2 | EW-M19MP-2/3/4/5P | mm² | 2.5mm² | 450V | 20A | 3.5-7mm, 7-10mm | IP68 | UL 94 V-0 |
| 3 | EW-M23MP-2/3/4/5P | mm² | 4.0mm² | 450V | 30A | 5-9mm, 9-12mm | IP68 | UL 94 V-0 |
| 4 | EW-M28MP-2/3/4/5/6P | mm² | 6.0mm² | 450V | 50A | 5-9mm, 9-12mm, 10-14mm | IP68 | UL 94 V-0 |
| 5 | EW-M19MP-2/3/4/5P | mm² | 2.5mm² | 450V | 20A | 3.5-7mm, 7-10mm | IP68 | UL 94 V-0 |
| 6 | EW-M23MP-2/3/4/5P | mm² | 2.5mm² | 450V | 30A | 5-9mm, 9-12mm | IP68 | UL 94 V-0 |
| 7 | EW-M28MP-2/3/4/5/6P | mm² | 4.0mm² | 450V | 50A | 5-9mm, 9-12mm, 10-14mm | IP68 | UL 94 V-0 |

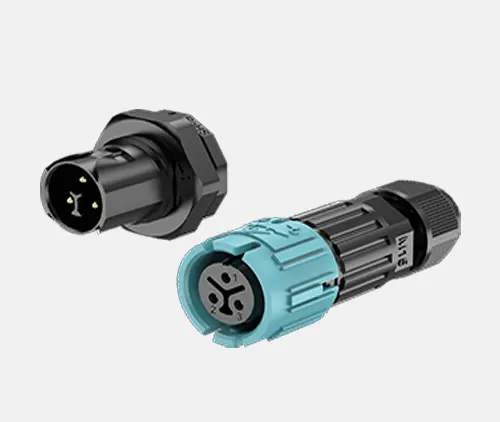

EW-M15MP-2/3/4P

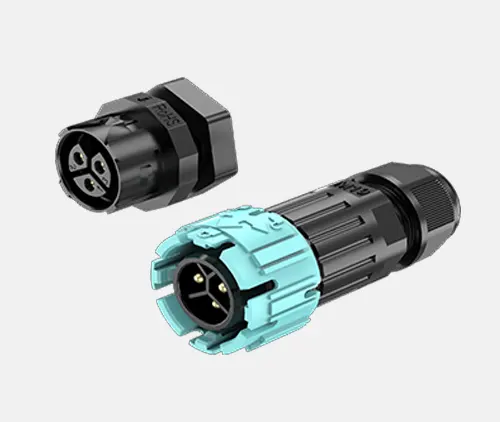

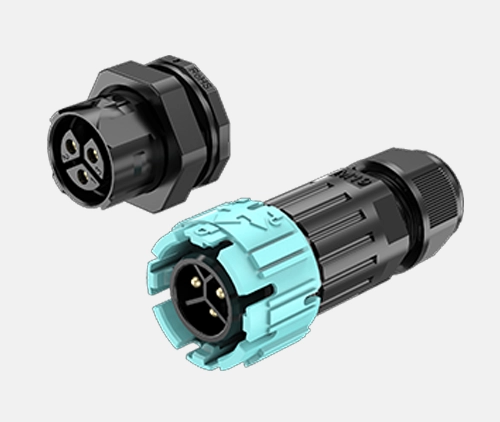

EW-M19MP-2/3/4/5P

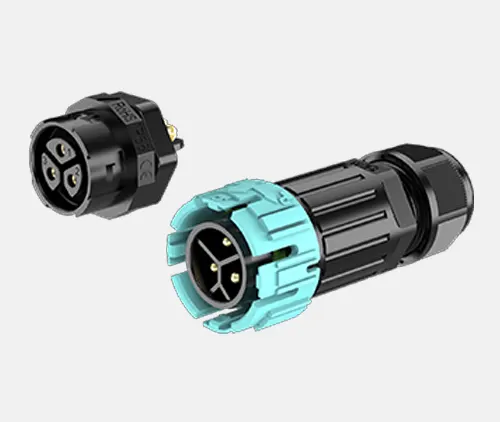

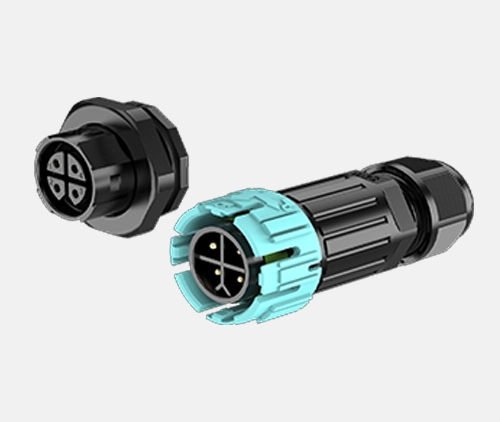

EW-M23MP-2/3/4/5P

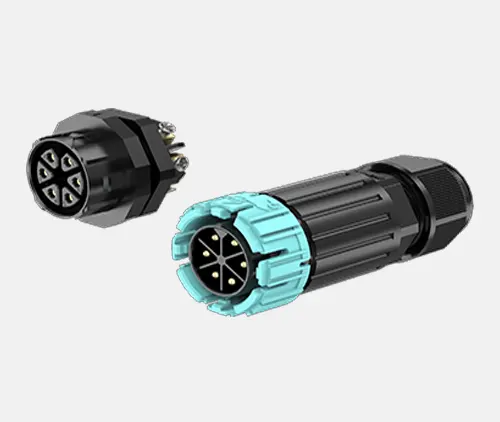

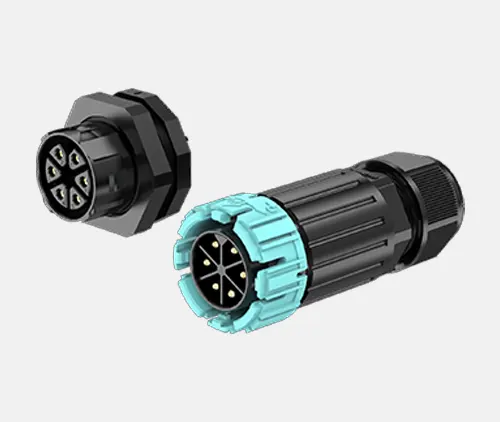

EW-M28MP-2/3/4/5/6P
EW-M19MP-2/3/4/5P
EW-M23MP-2/3/4/5P
EW-M28MP-2/3/4/5/6P
Product Video
Flange Panel Mount Connector Series
| No | Model | Min. wire size | Max. wire size | Rated Voltage | Current | Cable Outer Diameter | IP Rating | Fire Rating |
|---|---|---|---|---|---|---|---|---|
| 1 | EW-M15MP-3P | mm² | 1.5mm² | 450V | 17.5A | 2.5-4.5mm, 3.5-7mm | IP68 | UL 94 V-0 |
| 2 | EW-M19MP-3P | mm² | 2.5mm² | 450V | 24A | 3.5-7mm, 7-10mm | IP68 | UL 94 V-0 |
| 3 | EW-M23MP-3P | mm² | 4.0mm² | 450V | 41A | 5-9mm, 9-12mm | IP68 | UL 94 V-0 |
| 4 | EW-M28MP-3P | mm² | 6.0mm² | 450V | 41A | 5-9mm, 9-12mm, 10-14mm | IP68 | UL 94 V-0 |
| 5 | EW-P23MP-3P | mm² | 2.5mm² | 450V | 24A | 5-9mm, 9-12mm | IP68 | UL 94 V-0 |
| 6 | EW-P25MP-4/5P | mm² | 2.5mm² | 450V | 30A | 5-9mm, 9-12mm, 10-14mm | IP68 | UL 94 V-0 |

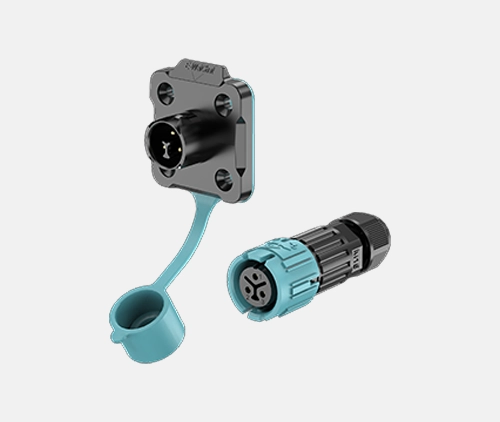

EW-M15MP-3P

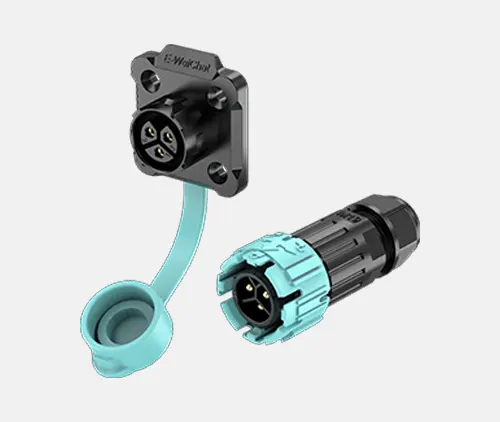

EW-M19MP-3P

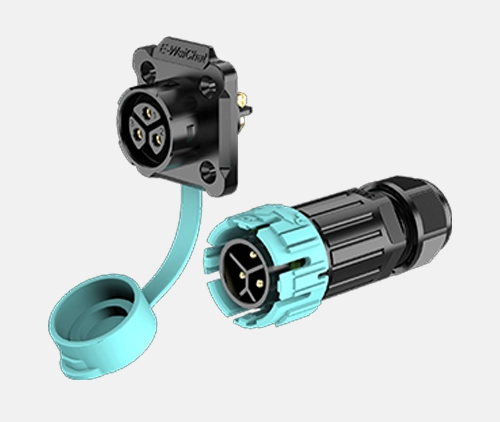

EW-M23MP-3P

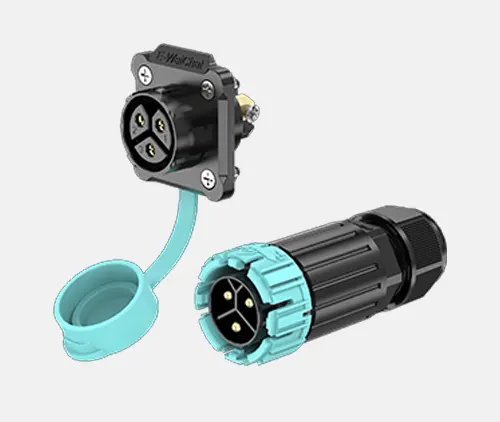

EW-M28MP-3P

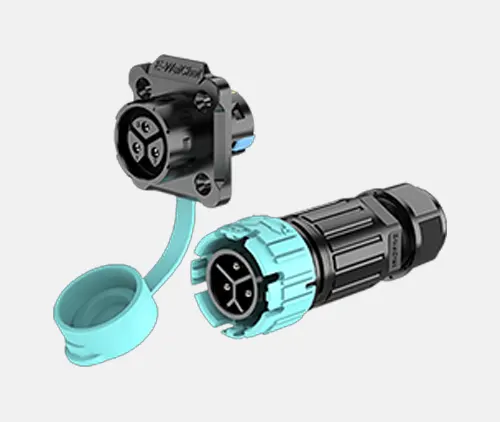

EW-P23MP-3P

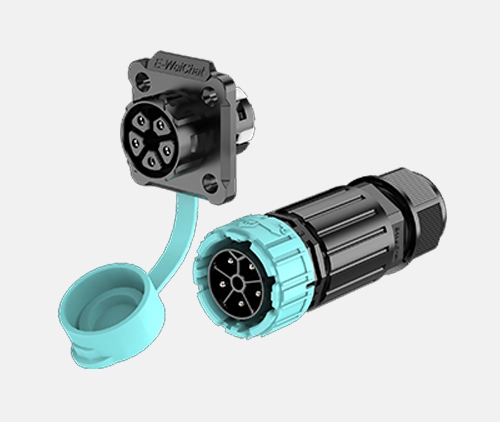

EW-P25MP-4/5P
Product Video

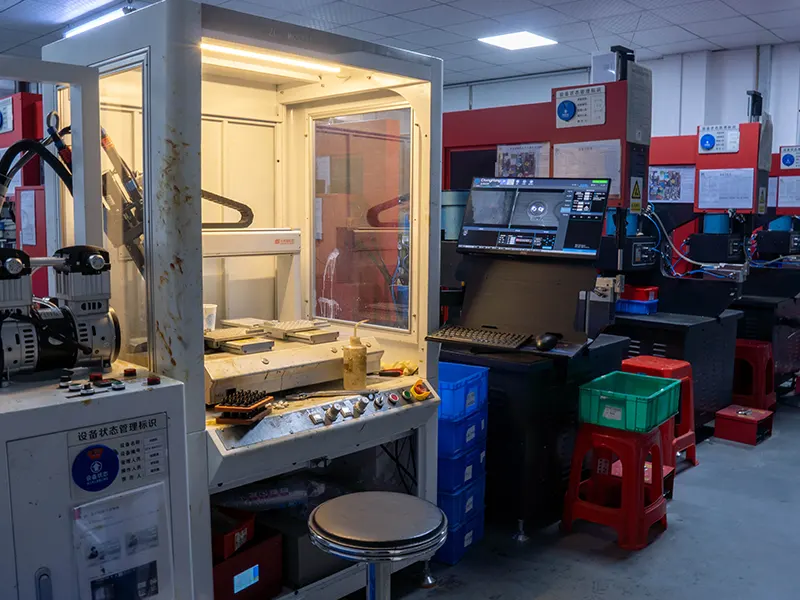

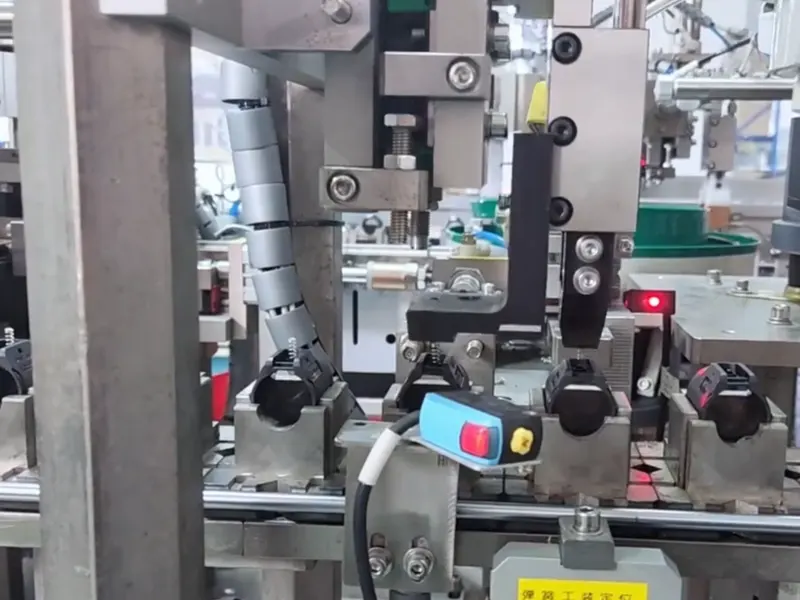

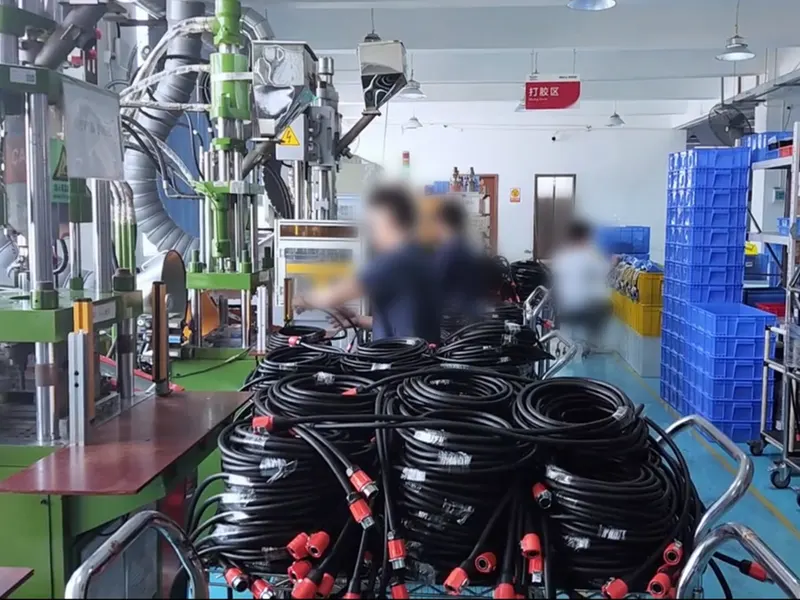

How We Manufacture
Male and Female Waterproof Connectors
01

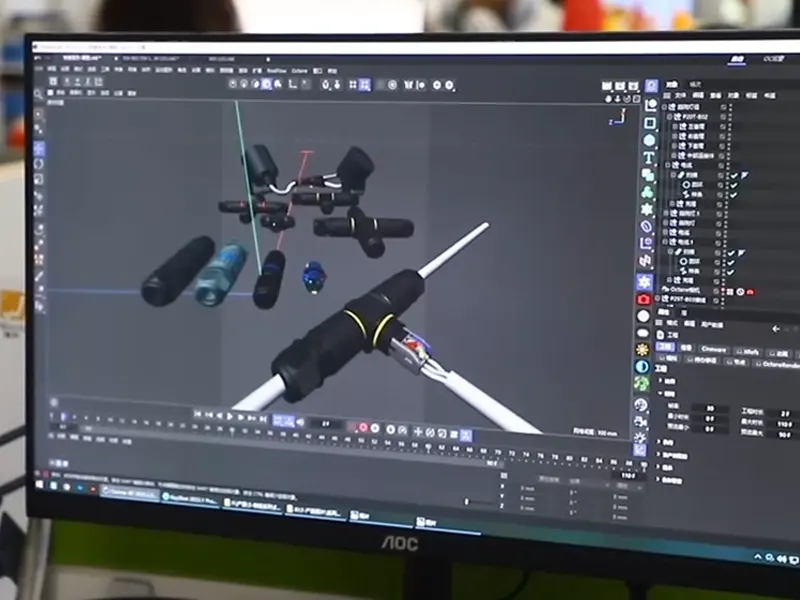

R&D and Design
02
Mold Development and Manufacturing
03

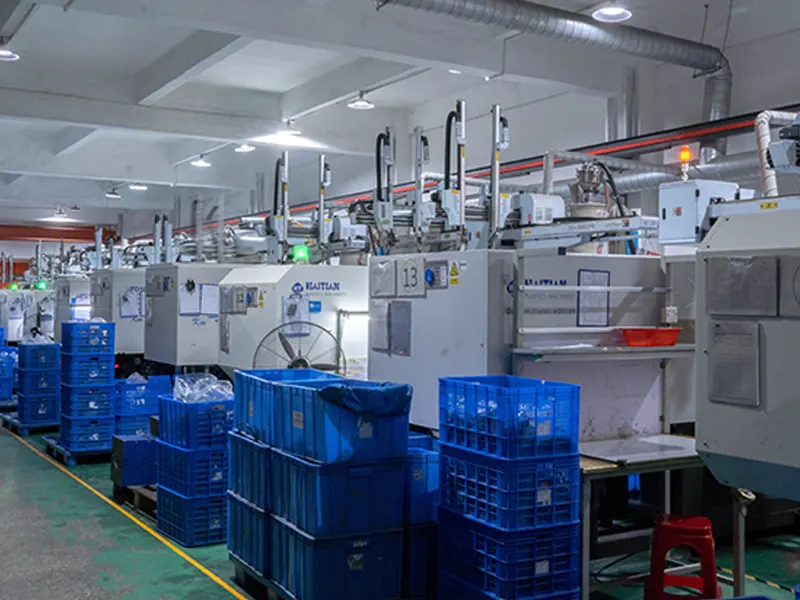

Injection Molding Production
04

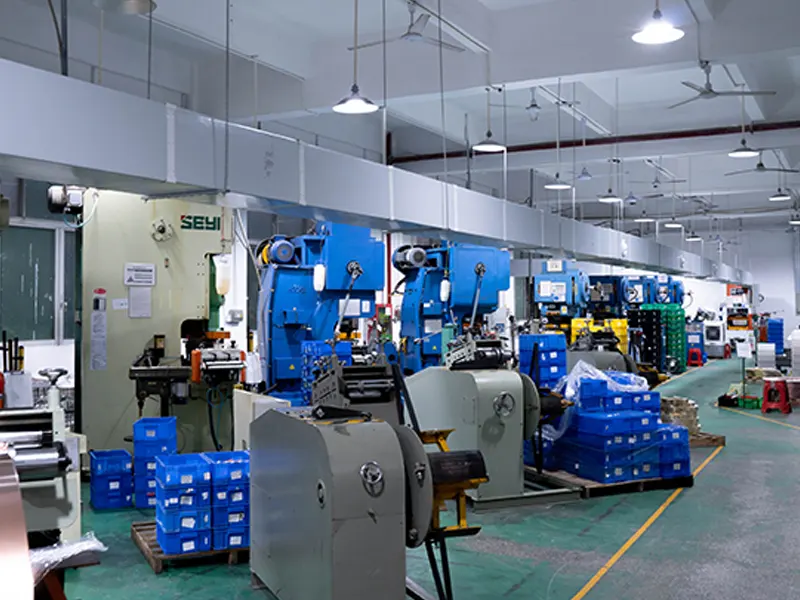

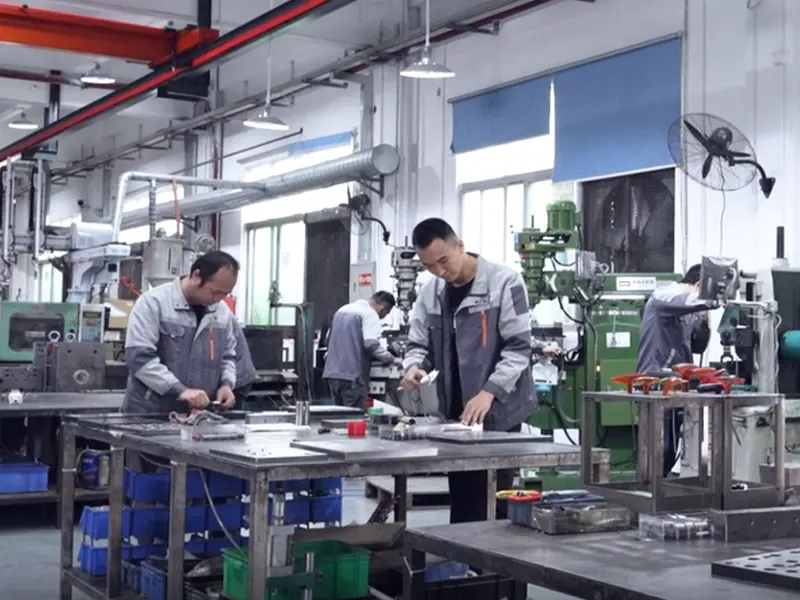

Metal Component Manufacturing
05

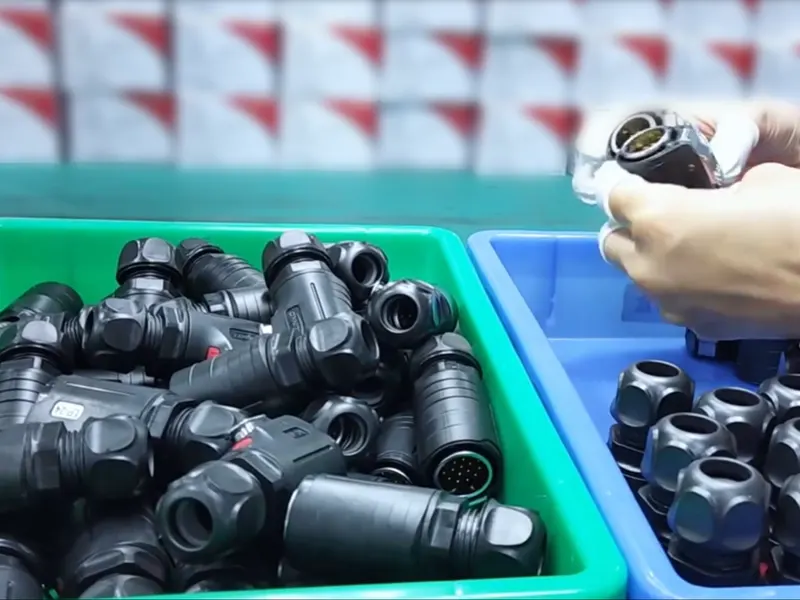

Component Assembly
06
Final Assembly
07
Quality Inspection
08

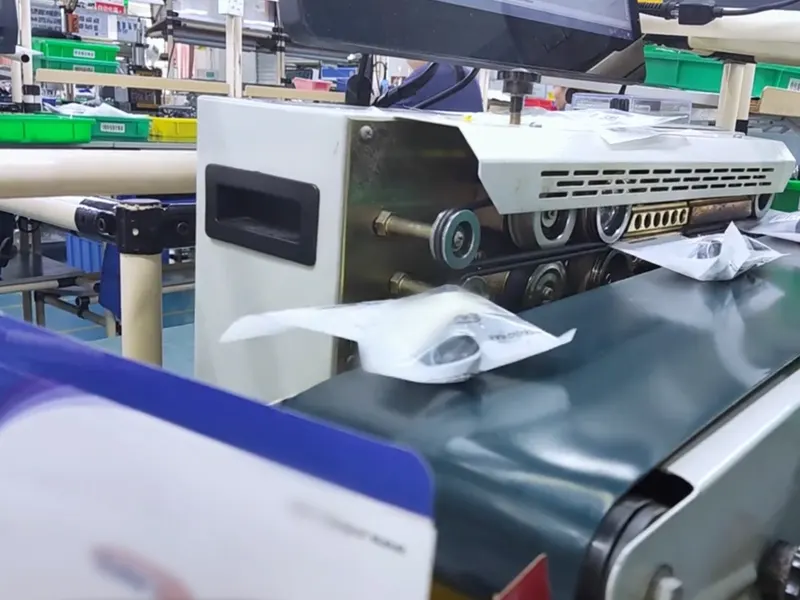

Professional Packaging
09

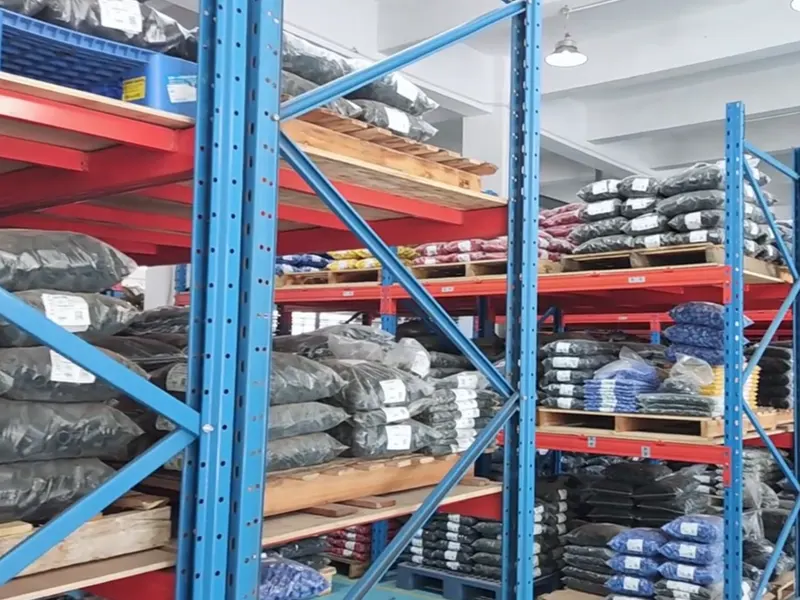

Finished-Product Warehouse
How to Install
Male & Female Waterproof Connectors
Simple 4-step installation that anyone can do. No special tools required – just follow these steps for a secure, waterproof connection every time. Takes less than 2 minutes per connector pair.
Installation Steps

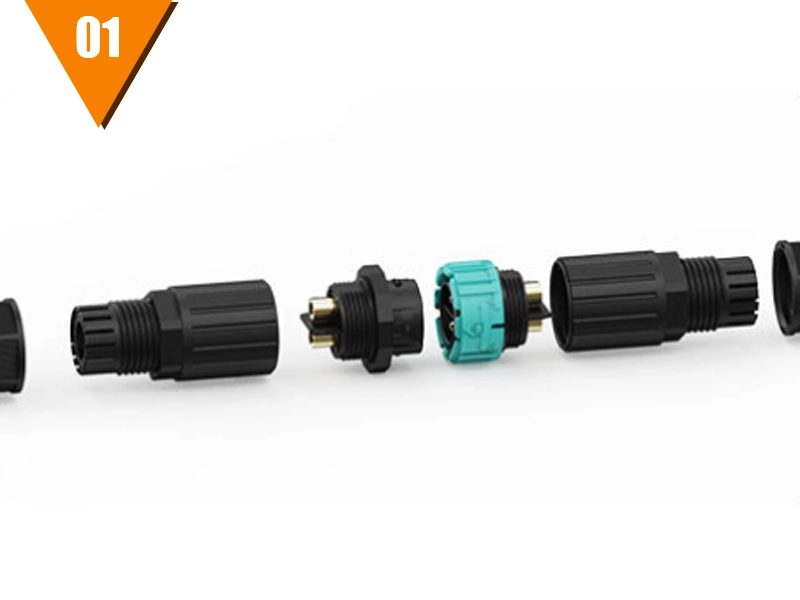

Step 1: Unscrew the Cable Gland

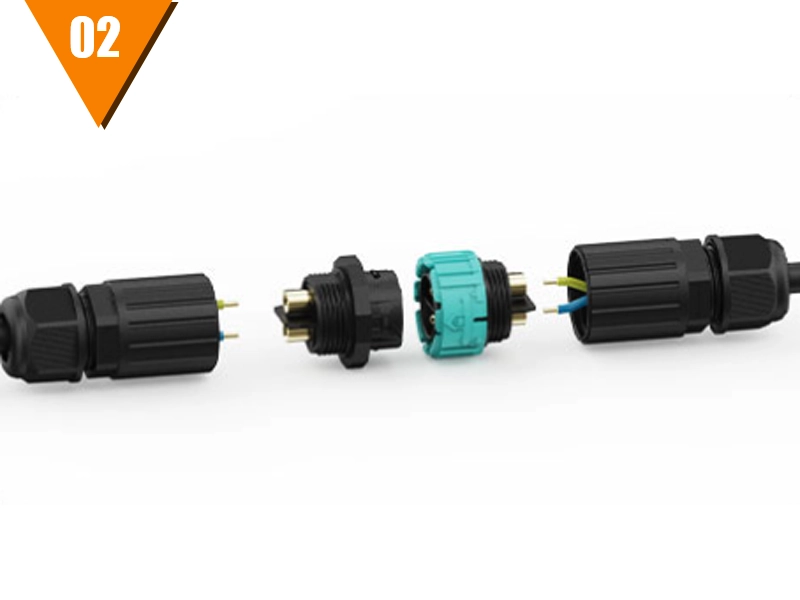

Step 2: Thread Cable Through Components

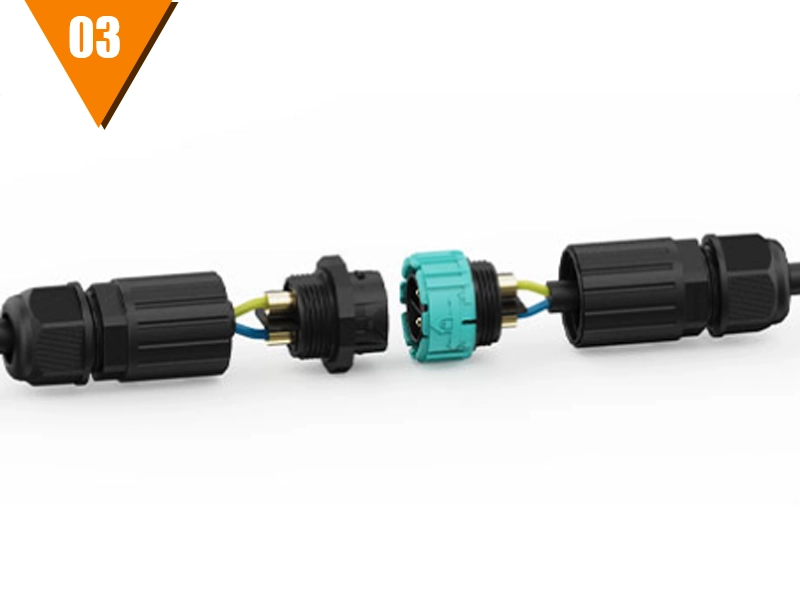

Step 3: Wire and Tighten Everything

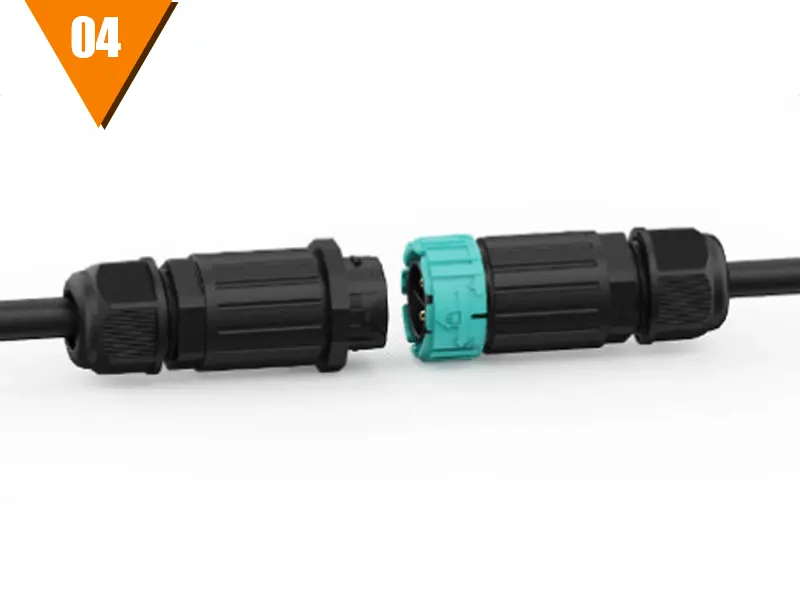

Step 4: Mate Connectors and Lock
Watch the Installation Process
See exactly how it’s done in under 90 seconds. Our step-by-step video demonstration shows you the proper technique for installing waterproof connectors. Perfect for training your installation team or confirming you’re doing it right.
Customer Success Stories
Our LP Series industrial waterproof connectors deliver exceptional reliability in the world’s most demanding environments, from extreme manufacturing conditions to harsh outdoor installations. These real-world success stories demonstrate how our connectors eliminate downtime, reduce maintenance costs, and ensure continuous operation where failure is not an option.
Resort Landscape Lighting Project
Client Profile:
Mountain View Resort & Spa – 50-acre luxury property in Colorado with extensive outdoor lighting requirements.
The Challenge:
The resort needed to illuminate 2.5 miles of garden pathways, 80+ landscape features, and architectural wall-washers across the property. Previous connectors failed repeatedly during snow and rain, causing maintenance headaches and safety concerns. Their team was spending 15+ hours monthly on connector repairs and replacements.
Our Solution:
We supplied 850 pairs of IP68-rated male/female waterproof connectors for their entire lighting system. The self-locking mechanism eliminated accidental disconnections from lawn equipment and foot traffic. Quick-connect design allowed their maintenance team to replace fixtures in minutes instead of hours.
Results Achieved:
- Zero connector failures in 18 months of operation through two harsh winters
- Maintenance time reduced by 90% – from 15 hours to 1.5 hours monthly
- $12,000 annual savings on labor and replacement parts
- Installation of new lighting zones completed 40% faster with plug-and-play connections
Client Feedback:
“We went from replacing connectors weekly to not thinking about them at all. The waterproof seal works perfectly even when buried under snow. Our electricians actually thank us for switching suppliers – that tells you everything.”
— David Martinez, Facilities Director
E-Commerce LED Strip Distributor
Client Profile:
BrightLine LEDs – Online retailer selling LED strip kits to 15,000+ customers annually across North America.
The Challenge:
Customer complaints about complicated wiring and failed connections were hurting their ratings. Returns due to “difficult installation” reached 8% of orders. They needed foolproof connectors that DIY customers could install confidently without calling support.
Results Achieved:
- Return rate dropped from 8% to 1.2% within three months
- Support calls reduced by 65% – fewer “how do I connect this?” questions
- 5-star reviews increased 40% with customers praising “easy installation”
- Repeat customer rate improved 28% due to better first-time experience
Client Feedback:
“These connectors transformed our business. Customers who were intimidated by wiring now successfully install LED strips themselves. Our Amazon ratings went from 3.9 to 4.7 stars, and that’s directly tied to switching to these connectors. Worth every penny.”
— Sarah Chen, Operations Manager
Custom Male Female Waterproof Connector
- Laser engraving or pad printing directly on connector housings
- Your company name and model numbers molded into the design
- Custom color options for locking rings or cable glands
- Retail-ready boxes with your branding and product information
- Bulk packaging with your company labels for wholesale distribution
- Custom inserts with installation instructions in your language
- QR codes linking to your website or support resources
Why Choose AGX
Connector as Your Supplier
Professional Manufacturing Experience
AGX specializes in waterproof connectors and cable assemblies with years of industry expertise. We focus on stable performance, precision engineering, and long product lifespan.
Strict Quality Control and Certification
Every connector is produced under ISO9001-certified processes and passes 100% inspection. Materials and finished products meet CE, RoHS, and other international standards.
OEM / ODM Customization Available
We support customized cable length, connector size, pin configuration, and packaging to fit your project needs — from prototypes to mass production.
Competitive Factory Pricing
As a direct manufacturer, AGX offers wholesale pricing with no middleman cost. High-quality connectors at the most cost-effective rates.
Fast Delivery and Global Support
With a streamlined supply chain and strong logistics partners, AGX ensures on-time delivery to global customers across Europe, America, and Asia.
Trusted by Global Brands
Our waterproof connectors are widely used in LED lighting, solar systems, marine, automotive, and industrial automation, earning long-term partnerships with OEM clients worldwide.

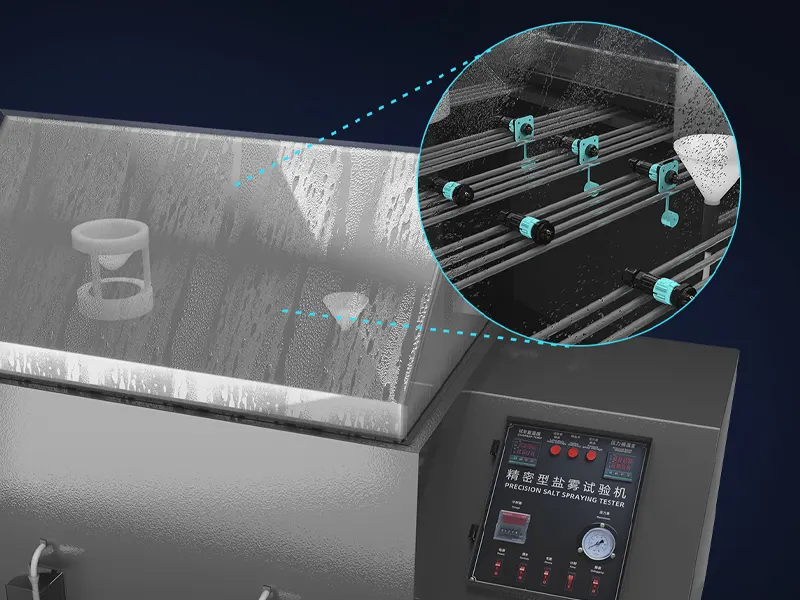

Product Testing-Where Quality Happens
Automatic Insertion and Extraction Tester
Temperature rise current tester
Voltage Tester
Horizontal plug-in test
DC Resistance + Insulation Resistance Tester
IP68 Waterproof Tester
Scorch Wire Tester
Leakage Trace Tester
Horizontal Vertical Flame Tester
Constant temperature and humidity tester
Certification & Patents
Our commitment to quality and innovation is backed by international certifications, including TÜV, UL, SAA, and CE marks that verify our products meet the highest global standards. We’ve also secured multiple European intellectual property registrations, protecting our unique connector designs while demonstrating our dedication to advancing industry technology.
