Achieving reliable performance in harsh environments requires advanced connector solutions. At E-weichat, we specialize in IP68-rated waterproof connectors designed to deliver exceptional durability and functionality. Whether for outdoor lighting, industrial machinery, or marine applications, our connectors are engineered to provide unmatched protection against water, dust, and corrosion.

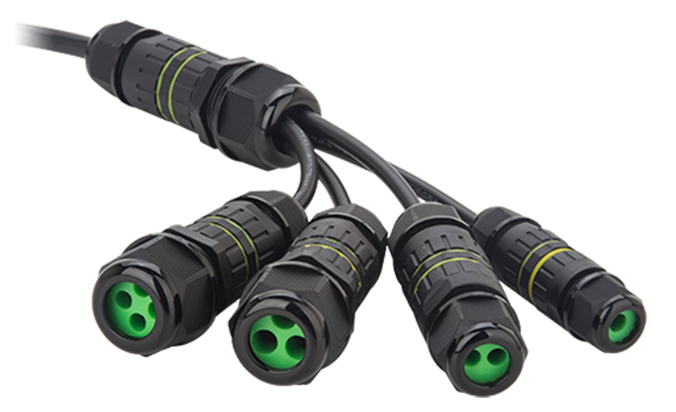

To meet diverse industry demands, we offer a wide range of connectors, in-line circular connectors, male and female connectors, LP series device connectors, waterproof junction boxes, MC4 soloar connectors, Energy storage connectors and custom solutions. Each product is meticulously crafted with premium materials and tested to ensure long-term reliability in even the most challenging conditions.
Discover the E-weichat difference with our customizable waterproof connectors. Our solutions are tailored to your unique requirements, from size and configuration to branding. Trust in our expertise to enhance your projects with products that combine robust protection with seamless functionality. Contact us today to explore how our waterproof connectors can elevate your operations.

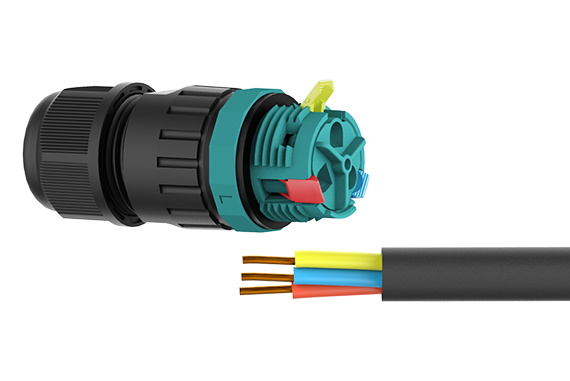

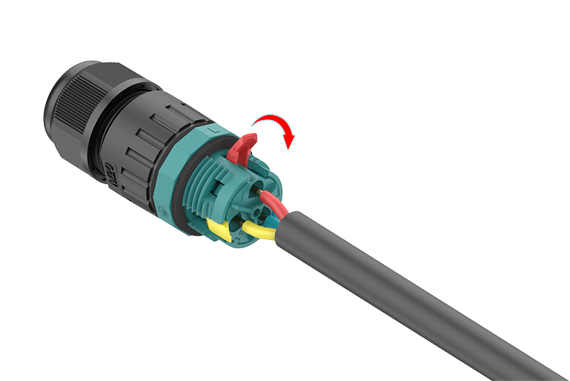

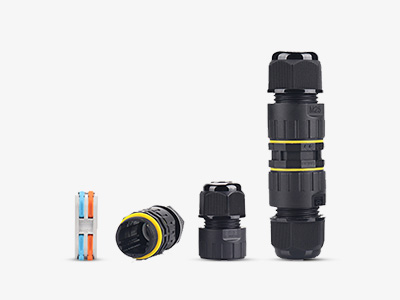

Pull the lever up, insert a conductor and push the lever back down – done! As tool-free, lever-waterproof connectors, screw free Series Connectors easily, quickly and safely connect solid, stranded and fine-stranded conductors ranging from 0.5 to 2.5 mm².

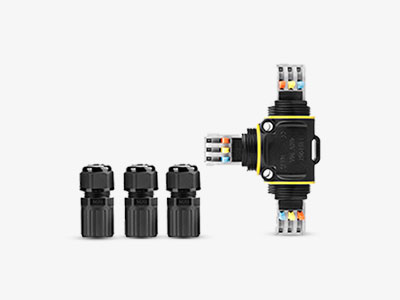

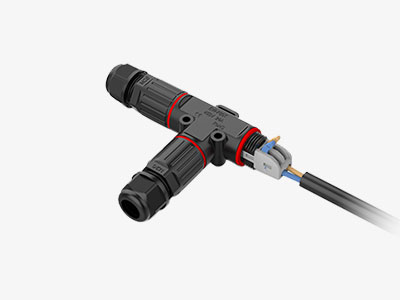

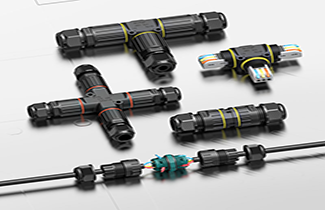

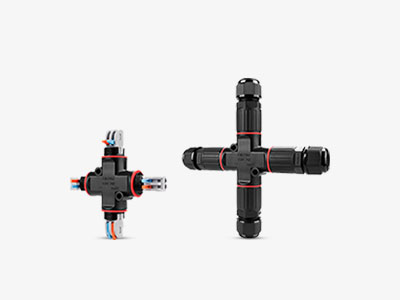

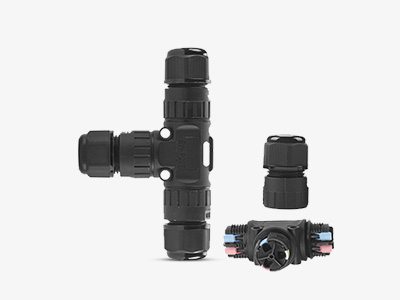

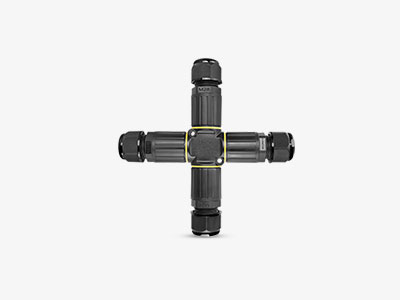

They are available in various designs and variants. For example, straight-through connections, T-connections, X-connections, panel connections, and male-to-female connections. In addition, we offer a wide range of accessories to enable the screwless series of quick-wire connectors to be used in a wide variety of applications.

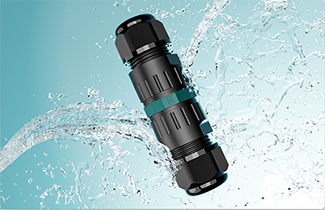

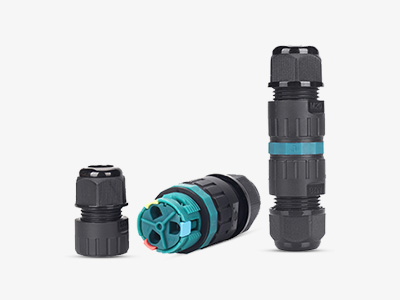

Item no.: EW-P20-2P / 3P
IP Rating: IP68
Fire Rating: UL94 V-0
Rated Voltage: 450V
Rated Current: 16A
Wire Section: 0.5~2.5mm²
Outer Cable Diameter:
5-9mm, 9-12mm
Ambient Temperature: -40℃~105℃
Warranty: 3 Years

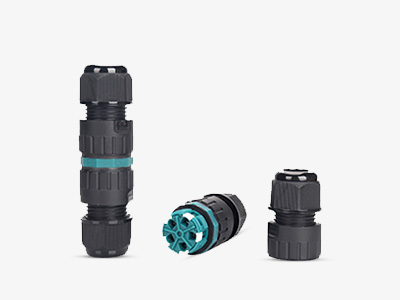

Item no.: EW-P25-4P / 5P
IP Rating: IP68
Fire Rating: UL94 V-0
Rated Voltage: 450V
Rated Current: 16A
Wire Section: 0.5~2.5mm²
Outer Cable Diameter:
5-9mm, 9-12mm; 10-14mm
Ambient Temperature: -40℃~105℃
Warranty: 3 Years
Item no.: EW-M25B-2P / 3P
IP Rating: IP68
Fire Rating: UL94 V-0
Rated Voltage: 450V
Rated Current: 24A
Wire Section: 0.5~2.5mm²
Outer Cable Diameter:
5-9mm, 9-12mm;10-14mm
Ambient Temperature: -40℃~105℃
Warranty: 3 Years
Item no.: EW-P20T-2P / 3P
IP Rating: IP68
Fire Rating: UL94 V-0
Rated Voltage: 450V
Rated Current: 16A
Wire Section: 0.5~2.5mm²
Outer Cable Diameter:
5-9mm, 9-12mm
Ambient Temperature: -40℃~105℃
Warranty: 3 Years
Item no.: EW-P20T-B02
IP Rating: IP68
Fire Rating: UL94 V-0
Rated Voltage: 450V
Rated Current: 24A
Wire Section: 0.5~2.5mm²
Outer Cable Diameter:
5-9mm, 9-12mm
Ambient Temperature: -40℃~105℃
Warranty: 3 Years
Item no.: EW-P20X-2P
IP Rating: IP68
Fire Rating: UL94 V-0
Rated Voltage: 450V
Rated Current: 24A
Wire Section: 0.5~2.5mm²
Outer Cable Diameter:
5-9mm, 9-12mm;
Ambient Temperature: -40℃~105℃
Warranty: 3 Years
Item no.: EW-P25T-B03
IP Rating: IP68
Fire Rating: UL94 V-0
Rated Voltage: 450V
Rated Current: 24A
Wire Section: 0.5~2.5mm²
Outer Cable Diameter:
5-9mm, 9-12mm;10-14mm
Ambient Temperature: -40℃~105℃
Warranty: 3 Years
Item no.: EW-P25X- 3P
IP Rating: IP68
Fire Rating: UL94 V-0
Rated Voltage: 450V
Rated Current: 24A
Wire Section: 0.5~2.5mm²
Outer Cable Diameter:
5-9mm, 9-12mm
Ambient Temperature: -40℃~105℃
Warranty: 3 Years
How It Works:
It links two cables straight while ensuring a solid waterproof seal.
Key Features:
Where to Use:
How It Works:
Key Features:
Where to Use:
How It Works:
Key Features:
Where to Use:

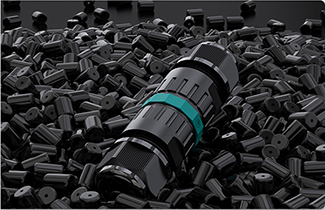

Thermoplastic rubbers with excellent resistance against excellent resistance against UV rays, ozone, and weather
Ideal rubbers with appropriate hardness and elasticity for securing and sealing the insulation the sheath of electric cables.
What E-Weichat Connectors Deliver
With various IP ratings across the “P Series” models, AGX connectors are designed to provide exceptional performance in the following areas:
The IP68 rating is part of the Ingress Protection (IP) standard, which is used to classify the degree of protection provided by enclosures against the intrusion of solid objects, dust, and liquids.
Here’s the description of the IP68 test standard:
First Digit (6): This refers to the protection against solid objects. A rating of 6 means the enclosure is dust-tight, providing complete protection against the ingress of dust and other small particles.
Second Digit (8): This refers to the protection against liquids. A rating of 8 means the enclosure is protected against continuous immersion in water beyond 1 meter in depth, typically up to a specified duration (such as 30 minutes or more), depending on the manufacturer’s standards.
| IP 65 | protected against contact, dust and splash water |
| IP66 | protected against contact, dust and splash water, strong jets of water |
| IP67 | protected against contact, dust and splash water, strong jets of water, temporary submersion up to 30 minutes at a depth of 1 m |
| IP68 | protected against contact, dust and splash water, strong jets of water, prolonged/permanent immersion in water upto 2 hours in 3 m depth |
| IP69 | protected against contact, dust and splash water, strong jets of water, prolonged/permanent immersion as well as strong jets of water such as high-pressure and steam jets |

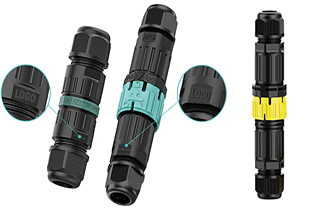

At AGX Connector, we understand that every project has its own specific requirements, and that’s why we offer customized waterproof connectors to perfectly suit your needs. We are more than just a connector manufacturer—we are your trusted partner in providing solutions that enhance the performance and durability of your electrical systems. Here’s how we tailor our connectors to meet your exact demands:
At AGX Connector, we are committed to delivering waterproof connectors that not only meet your expectations but exceed them. With our tailor-made solutions, you’ll enjoy the perfect combination of reliability, flexibility, and precision. Connect with us today to discuss how our custom connectors can enhance the performance of your electrical systems.

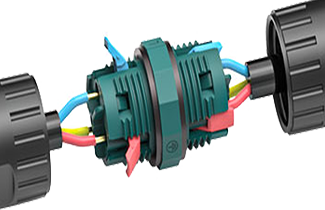

Easily and quickly connect all conductor types with different cross-sections using our two-, three-, and five-wire IP68 Waterproof Connectors. These push-wire connectors are designed to accommodate fine-stranded conductors ranging from 0.5 to 2.5 mm², as well as solid and stranded conductors from 0.5 to 2.0 mm² (18–14 AWG).

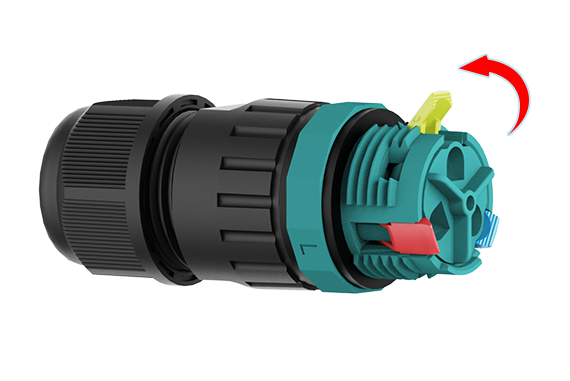

Easily and quickly open the waterproof splicing connectors. The levers on the “P” Series require minimal effort to open, allowing you to connect conductors swiftly and without the need for tools. The recessed handles on the sides provide a comfortable, secure grip, ensuring a hassle-free connection process.
IP68 Waterproof Connector – Select the perfect waterproof rubber plug to ensure your wire is paired with the ideal partner. Simply twist the cap tightly, ensuring a secure connection between the rubber plug and the wire. This creates a reliable seal that prevents water from penetrating, offering maximum protection against moisture and environmental conditions.
Easily and quickly open the waterproof splicing connectors. The levers on the “P” Series require minimal effort to open, allowing you to connect conductors swiftly and without the need for tools. The recessed handles on the sides provide a comfortable, secure grip, ensuring a hassle-free connection process.

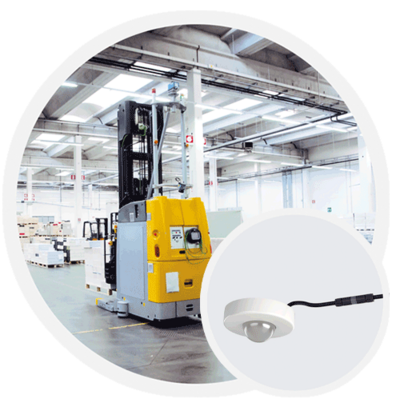

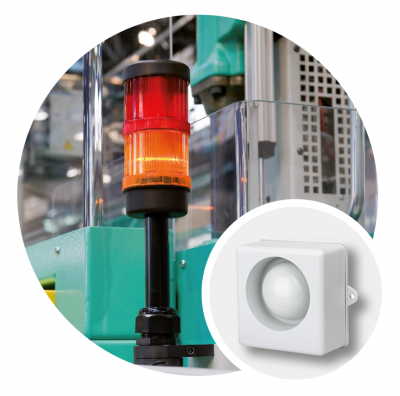

For Electrical Appliances and Apparatus Engineering:
Take full advantage of pluggable interfaces when expanding or replacing faulty devices. Our ultra-compact, screw-free connectors—complete with device connections and sealing caps—are designed for these tasks, providing exceptional IP protection and reliable performance in any environment.

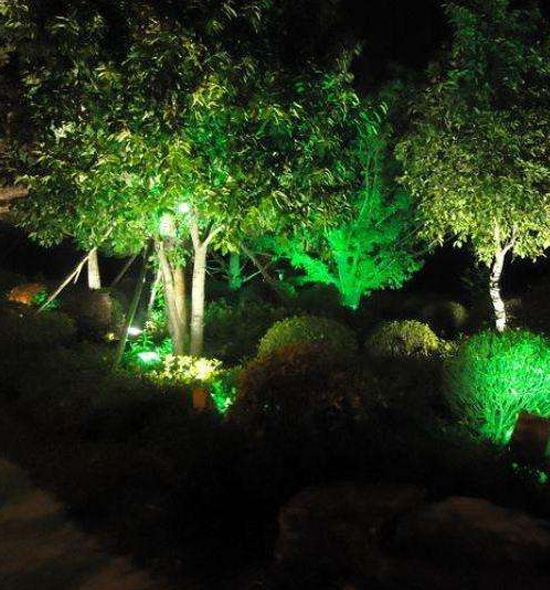

For Decorative Outdoor +Event Lighting:
Especially in the outdoor area, a professional electrical installation plays a decisive role.Difficult installation conditions often lead to faults, loss of the degree of protection and ultimately to failure of the lighting. With its compact unobtrusive design combined with the highest protection class, This series is the strong partner of outdoor lighting. The optional water stop increases failure safety.
Electrical Interconnection Customer Applications

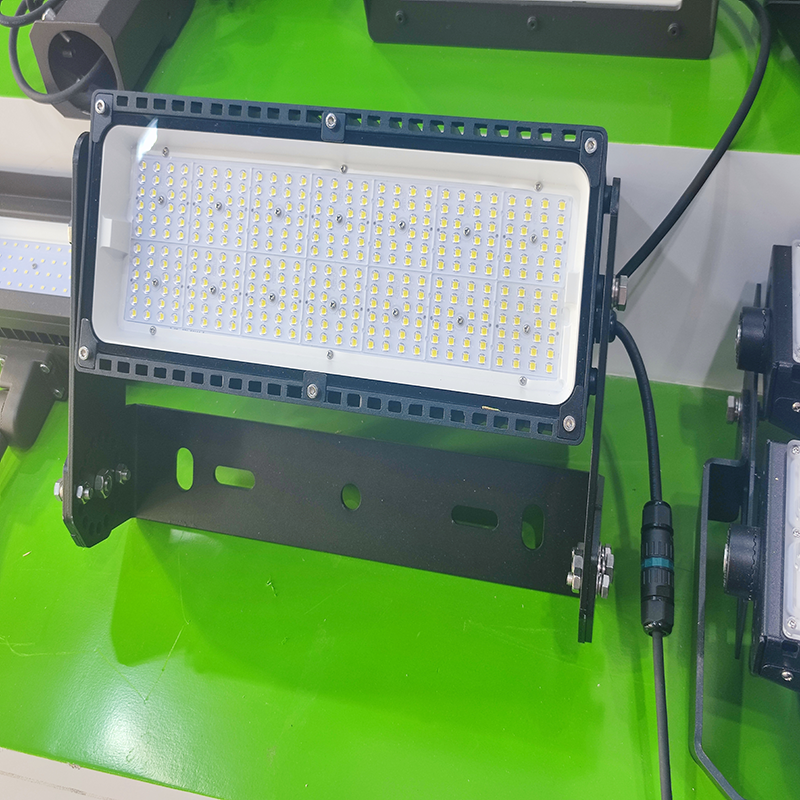

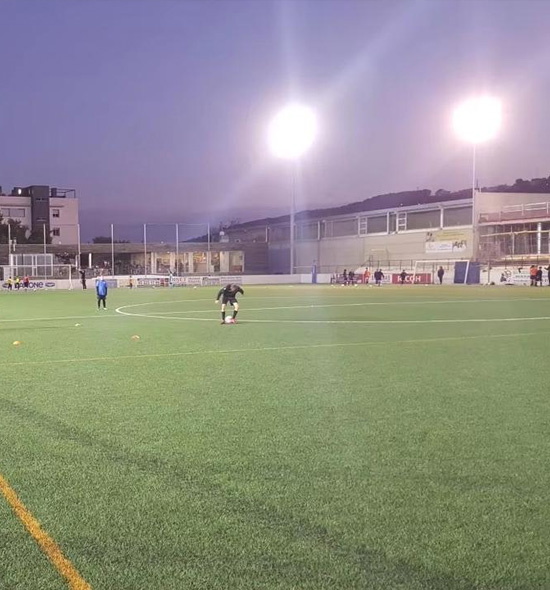

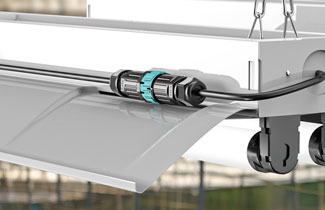

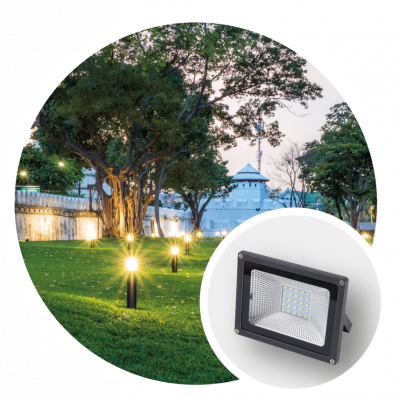

When you’re dealing with powerful floodlights that need to illuminate large spaces, reliability is key. Our waterproof connectors for high-power floodlights are engineered to handle demanding outdoor environments, offering exceptional performance even in rain, snow, or extreme temperatures. Whether you’re lighting a sports stadium or a large commercial area, these connectors ensure a secure, long-lasting connection, so you can focus on your project with peace of mind. Built to endure, they protect your electrical systems from moisture and dirt, keeping your floodlights shining bright.
For smaller, more energy-efficient floodlights, you need a connector that’s both compact and reliable. Our waterproof connectors for low-power single module floodlights are designed to provide just that. They’re perfect for residential, security, or decorative lighting solutions where a strong, water-tight seal is essential. These connectors make installation quick and easy, while ensuring long-term protection against water and dust. Whether you’re installing one floodlight or several, you can count on these connectors to keep your lighting system safe and functional, no matter the weather.

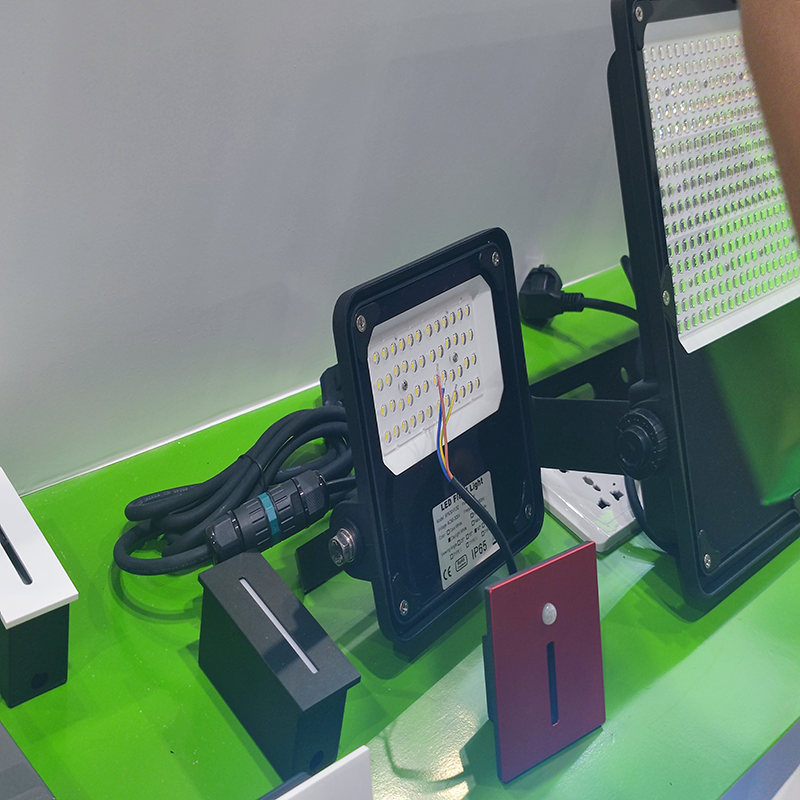

If you’re working with mini floodlights for accent lighting or smaller outdoor setups, you need a connector that matches their size and versatility. Our waterproof connectors for mini floodlights are just the solution. They’re designed to keep your lighting systems running smoothly in all conditions, from garden lighting to patio lights or even interior decorative floodlights. Easy to install, these connectors offer a reliable, waterproof seal that ensures your lights stay bright, safe, and protected from moisture or dirt. Whether you’re enhancing your backyard or illuminating a small area indoors, these connectors will support your mini floodlights with ease.
For your convenience, we’ve compiled answers to the most frequently asked questions about our screwless waterproof connectors. If you have any additional questions, please feel free to contact us.
Sem faucibus volutpat bibendum amet mattis lectus tristique sagittis non amet. Velit integer sollicitu lacus qua dictumst lorem Consectetur amet elit fusce.
Sem faucibus volutpat bibendum amet mattis lectus tristique sagittis non amet. Velit integer sollicitu lacus qua dictumst lorem Consectetur amet elit fusce.
Sem faucibus volutpat bibendum amet mattis lectus tristique sagittis non amet. Velit integer sollicitu lacus qua dictumst lorem Consectetur amet elit fusce.
Sem faucibus volutpat bibendum amet mattis lectus tristique sagittis non amet. Velit integer sollicitu lacus qua dictumst lorem Consectetur amet elit fusce.
Sem faucibus volutpat bibendum amet mattis lectus tristique sagittis non amet. Velit integer sollicitu lacus qua dictumst lorem Consectetur amet elit fusce.
Sem faucibus volutpat bibendum amet mattis lectus tristique sagittis non amet. Velit integer sollicitu lacus qua dictumst lorem Consectetur amet elit fusce.
Sem faucibus volutpat bibendum amet mattis lectus tristique sagittis non amet. Velit integer sollicitu lacus qua dictumst lorem Consectetur amet elit fusce.
Sem faucibus volutpat bibendum amet mattis lectus tristique sagittis non amet. Velit integer sollicitu lacus qua dictumst lorem Consectetur amet elit fusce.
Sem faucibus volutpat bibendum amet mattis lectus tristique sagittis non amet. Velit integer sollicitu lacus qua dictumst lorem Consectetur amet elit fusce.
Sem faucibus volutpat bibendum amet mattis lectus tristique sagittis non amet. Velit integer sollicitu lacus qua dictumst lorem Consectetur amet elit fusce.
When purchasing waterproof connectors, it’s important to understand the key factors that ensure the right fit for your needs. These connectors are designed to protect electrical circuits from water, dust, and harsh environments. Here’s a simple guide to help you make an informed decision:
A waterproof connector is an electrical device designed to create a secure connection while preventing water, dust, or debris from entering the connection point. Its waterproof capability is achieved using sealing materials (like rubber gaskets or O-rings) and housing designs that block ingress. These connectors ensure consistent performance even in harsh or wet environments.
Waterproofing is defined by the connector’s IP (Ingress Protection) rating, which classifies the level of protection against solid particles and liquids. For example:
IP67: Protected against dust and temporary immersion in water (up to 1 meter for 30 minutes).
IP68: Fully protected against dust and prolonged submersion under specific conditions.
IP69K: Designed for high-pressure, high-temperature spray-downs.
What are the main applications of waterproof connectors?
These connectors are widely used in industries such as:
Automotive: For headlights, tail lights, and engine wiring exposed to moisture.
Outdoor Lighting: For garden, street, or architectural lighting.
Marine: Used in boats or underwater equipment to prevent corrosion and short circuits.
Industrial Equipment: For machinery exposed to dust, water, and extreme temperatures.
Common types include:
Materials vary based on application needs:
Each IP rating indicates specific protection levels:
Voltage and current ratings depend on the connector’s size, material, and design. For instance:
Typical lead times are 4–8 weeks, depending on complexity. Customizations like branding may add 1–2 weeks.
Most manufacturers provide free or paid samples to ensure product compatibility.
Pricing depends on:
MOQs vary by manufacturer but are typically 100–1,000 units.
Delivery time is 2–6 weeks, depending on the order size and destination.
Warranties range from 3–5 years, covering manufacturing defects.
Submit a claim with supporting evidence (photos, test results). Most manufacturers replace or refund defective products.
Competitors may include global brands like Amphenol, TE Connectivity, or Molex. Differentiators include:
To make sure the selected products are suitable for your application, it is always better to test samples before massive purchase. Since most of our products don’t have MOQ, samples can be purchased with any quantity. There are free sample options for some product series, please contact our sales team for more information.
We deliver high-quality IP68 waterproof connectors and junction boxes tailored for reliable outdoor applications. we offer durability, safety, and custom branding to meet your specific needs.
